Liftgate Lid Handle
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the liftgate trim.
(Refer to Body - "TAILGATE TRIM )

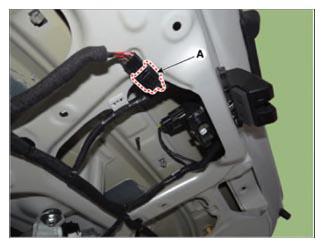

- Disconnect the connector (A).

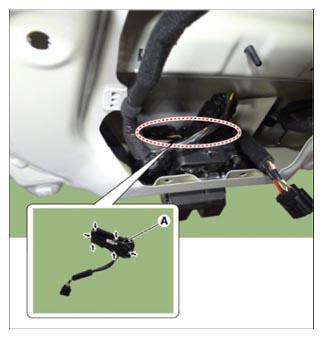

- Remove the liftgate lid handle & rear view camera assembly (A) by pressing the fixing hooks in the direction of arrows.
