Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Actuation Test" of concerned component with KDS.

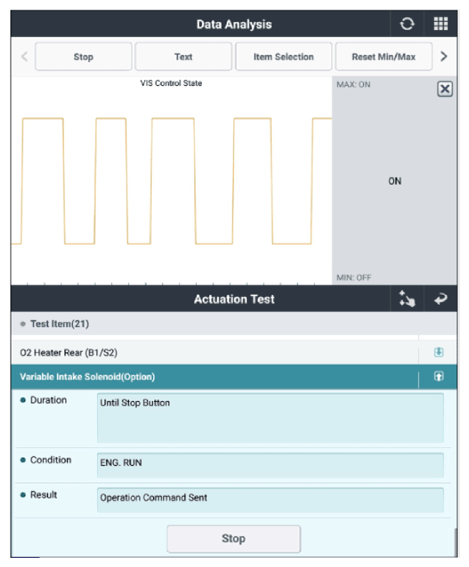

 Fig. 1
G15729341Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
