Engine Control System Diagnosis (5 Of 6)
>>
DTC P2123-00: Accelerator Position Sensor 1 Signal Circuit High Input
>>

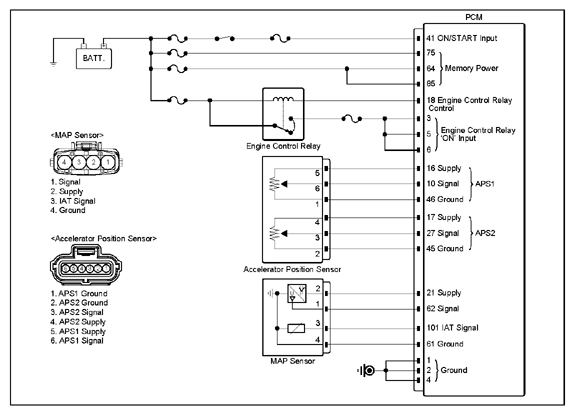

Wiring Inspection
>>

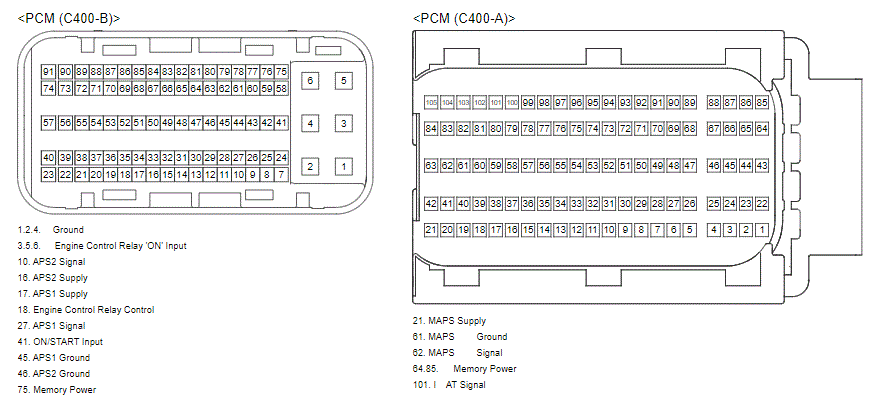

Circuit Inspection
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Inspection: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
