Engine Control System Diagnosis (5 Of 6)
>>
DTC P2127-00: Accelerator Position Sensor 2 Signal Circuit Low Input
>>
Wiring Inspection
>>

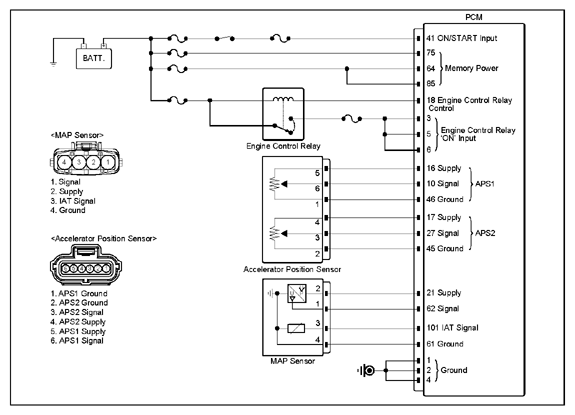

Circuit Inspection
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

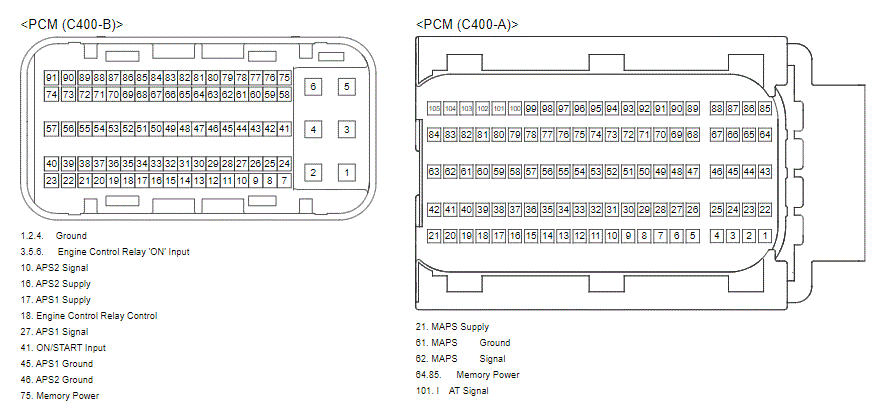

Circuit Inspection: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
