Liftgate Lock Module
- Remove the liftgate lid trim.
(Refer to Body - " TAILGATE TRIM ")

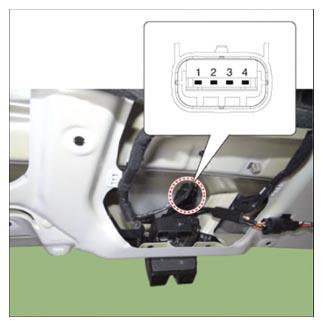

- Disconnect the connector from the liftgate lid latch.

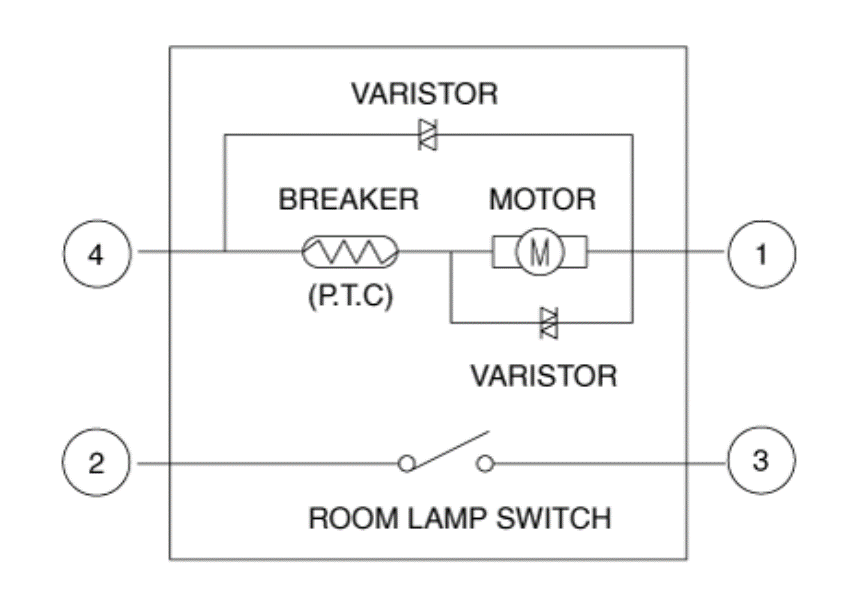

- Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
| Operation/Terminals | Lock → Unlock | Unlock → Lock |
|---|---|---|
| 4 | - | x |
| 1 | + | x |
| 2 | OFF → | ON → OFF |
| 3 |
