Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

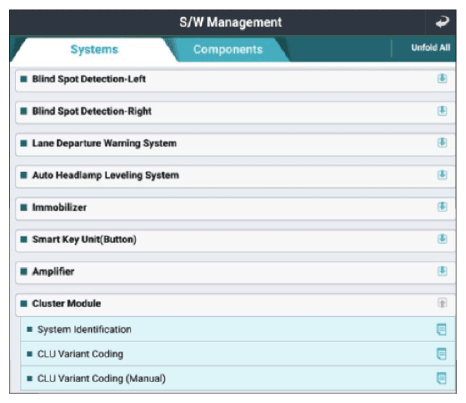

G15728455Courtesy of KIA MOTORS AMERICA, INC.

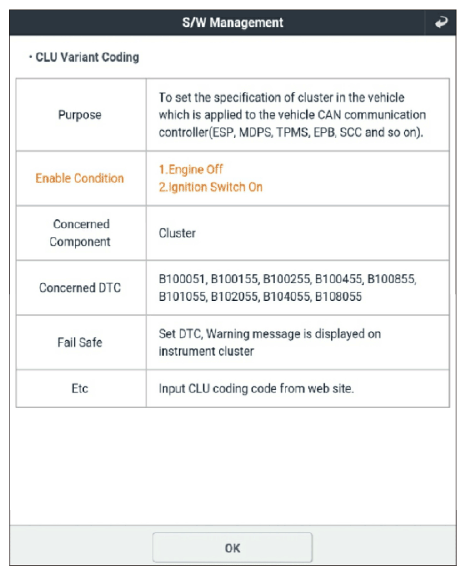

G15728456Courtesy of KIA MOTORS AMERICA, INC.

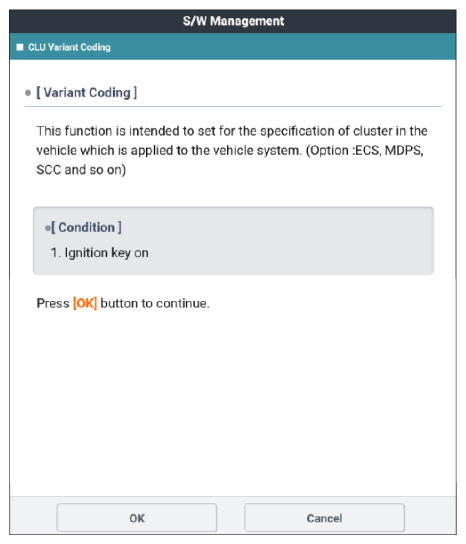

G15728457Courtesy of KIA MOTORS AMERICA, INC.

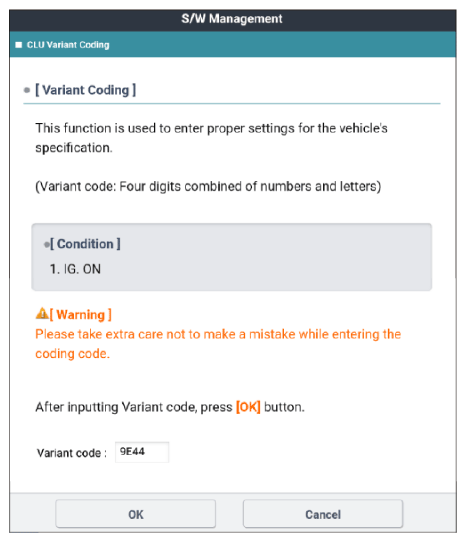

G15728458Courtesy of KIA MOTORS AMERICA, INC.
G15728459Courtesy of KIA MOTORS AMERICA, INC.

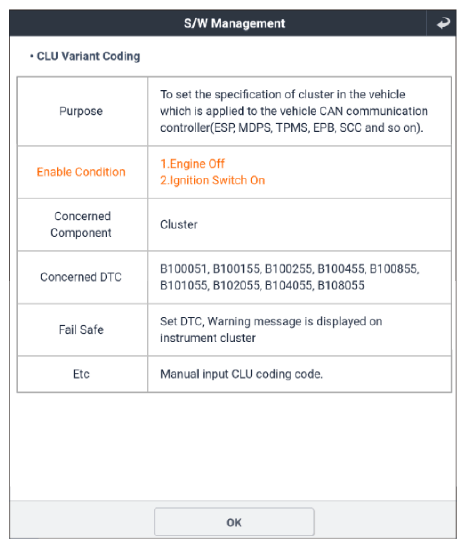

G15728460Courtesy of KIA MOTORS AMERICA, INC.

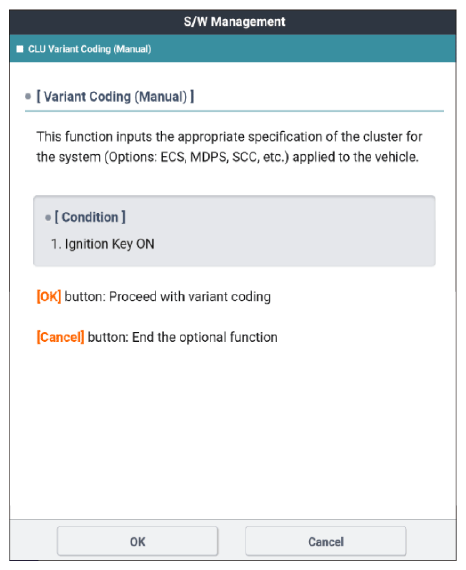

G15728461Courtesy of KIA MOTORS AMERICA, INC.

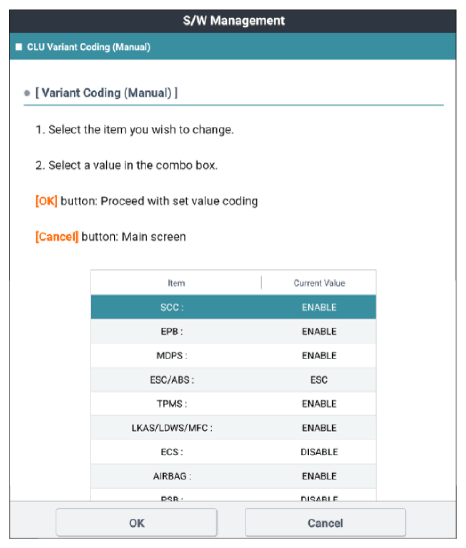

G15728462Courtesy of KIA MOTORS AMERICA, INC.

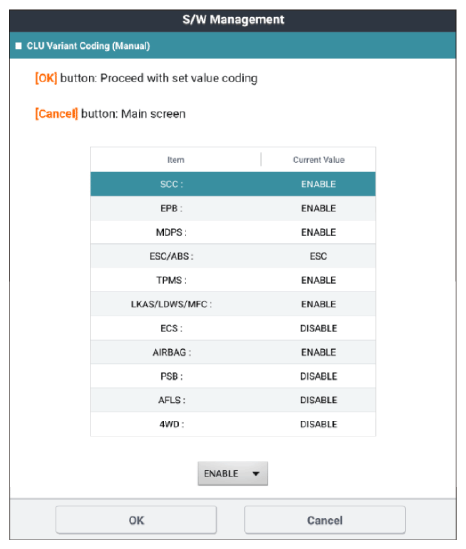

G15728463Courtesy of KIA MOTORS AMERICA, INC.
G15728464Courtesy of KIA MOTORS AMERICA, INC.
