Inspection component
Throttle Position Sensor (TPS)
- Connect the KDS on the Data Link Connector (DLC).
- Start the engine and measure the output voltage of TPS 1 and 2 at C.T. and W.O.T.
Refer to "Specifications "
ETC Motor
- Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.
Specification: 1.71 - 2.09 Ω (Room temperature)

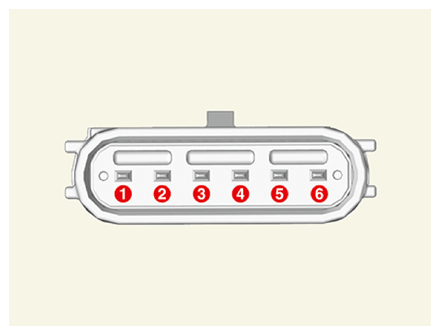

| Terminal | Function |
|---|---|
| 1 | Motor (-) |
| 2 | Motor (+) |
| 3 | Ground |
| 4 | TPS #2 Signal |
| 5 | Power |
| 6 | TPS #1 Signal |
