Repair Procedures: Adjustment

NOTE:

Perform the following procedure when replacing Engine Control Module (ECM) (New parts/Reused parts).
TCM backup & input procedure must be performed when replacing the ECM.

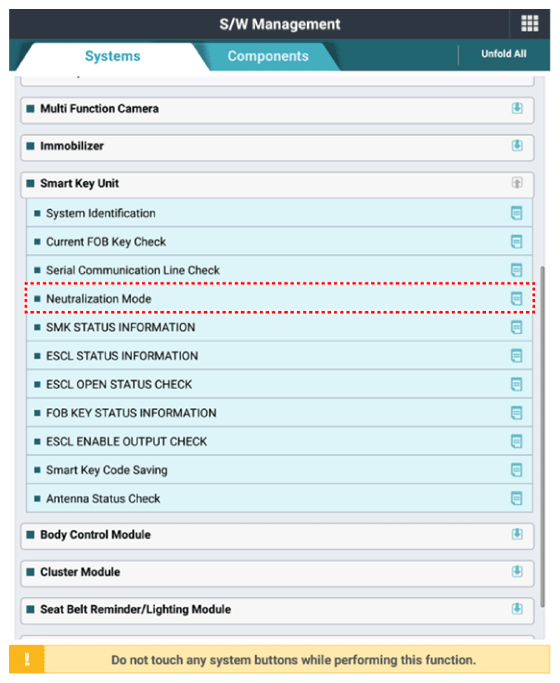

Perform the neutral mode using the KDS when replacing with a reused ECM.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the "Key Teaching" procedure by using the KDS.
Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

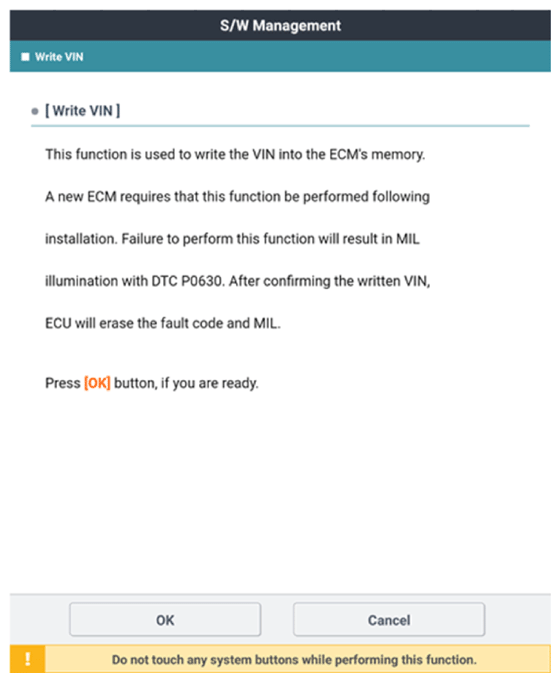

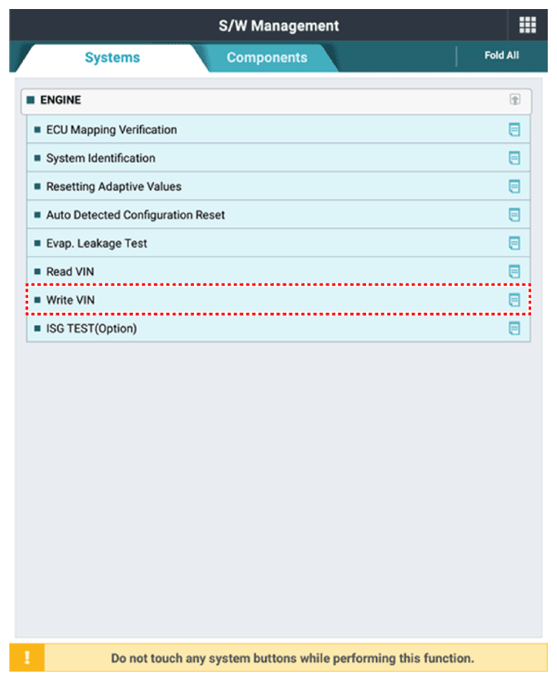

Perform the VIN writing procedure by using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

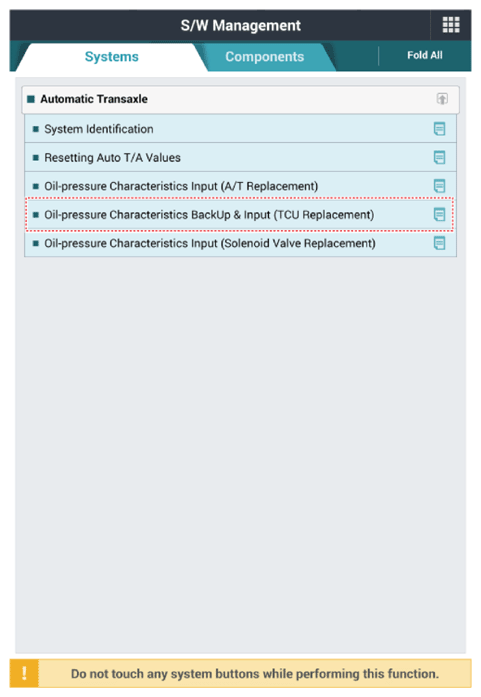

Perform the oil pressure characteristics input procedures.

Courtesy of KIA MOTORS AMERICA, INC.
Perform Electronic Throttle Control (ETC) module learning procedure
(Refer to Electronic Throttle Control System - "Adjustment ")
Perform the TCM adaptive values learning procedure.
(Refer to Transmission Control System - "TCM ADAPTIVE VALUES LEARNING ")
