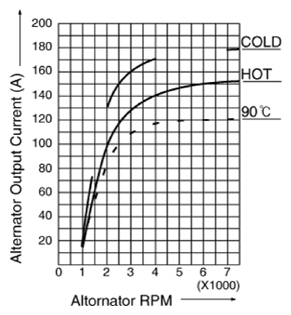

Charging System: Alternator

Item Specification
Type IC Regulator built-in type
Rated Voltage (V, A) 13.5, 150
Speed in use (RPM) 1, 000 - 18, 000
Number of pins 1
G14990544Courtesy of KIA MOTORS AMERICA, INC.
