Steering Limit Position Setting

NOTE:
  • Steering Limit Position Setting is must be done when any of cases is met as below.
  • After replacing SCM Unit.
  • After replacing steering.
  • SCM Error (Only 2 second movement while pressing SCM switch)
  1. Perform the "Steering Limit Position Setting" using the KDS.

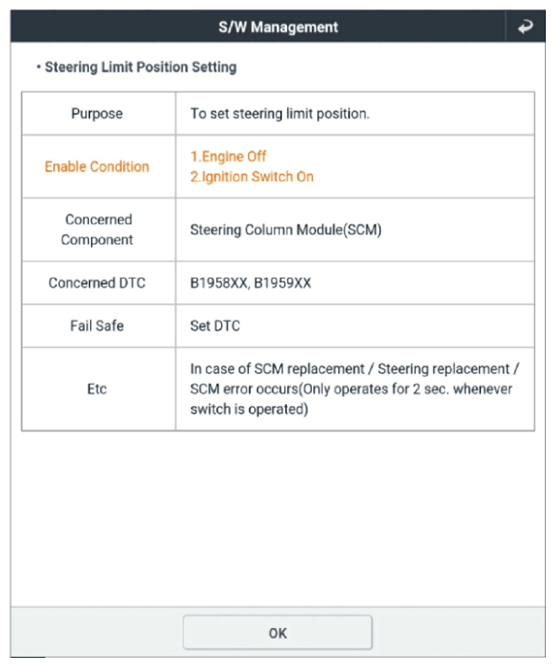

G14996838Courtesy of KIA MOTORS AMERICA, INC.

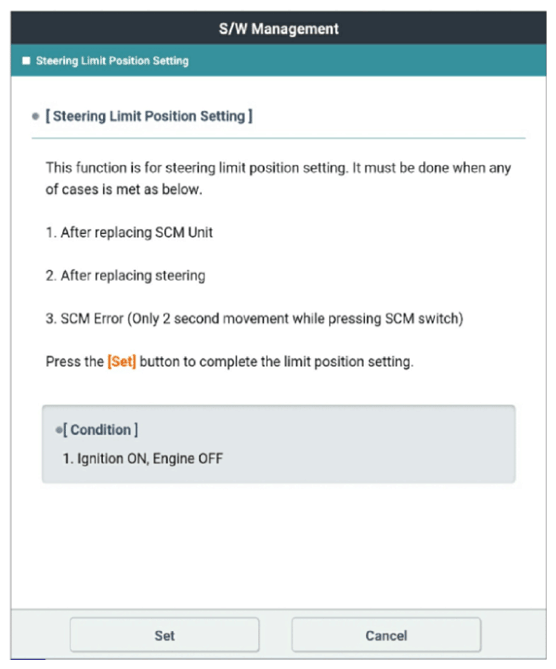

G14996839Courtesy of KIA MOTORS AMERICA, INC.

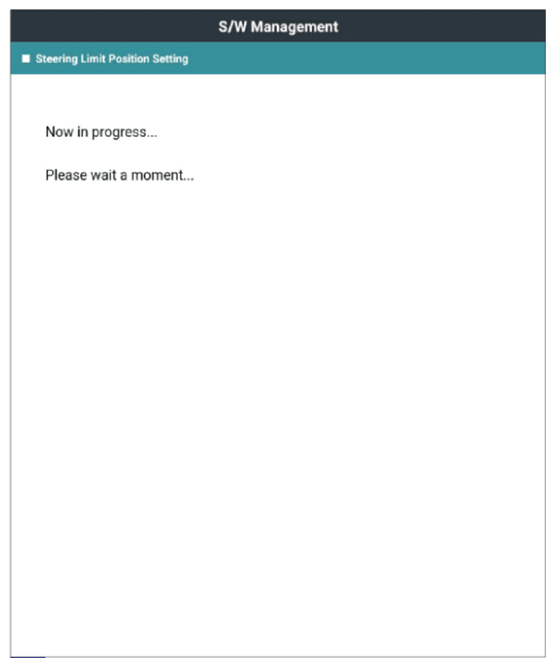

G14996840Courtesy of KIA MOTORS AMERICA, INC.

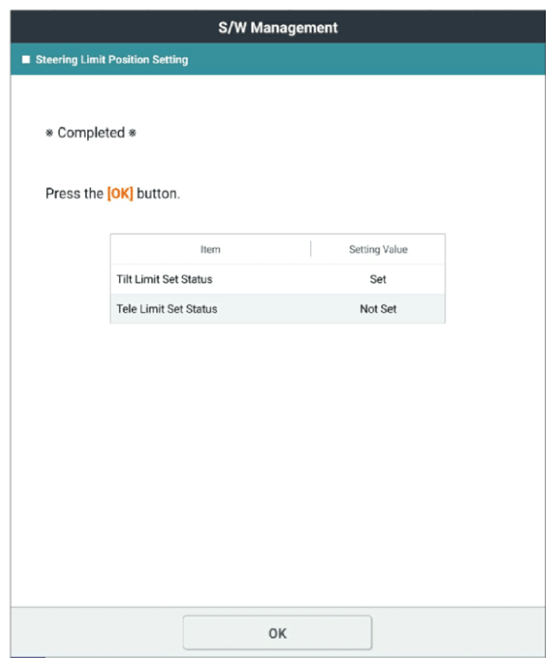

G14996841Courtesy of KIA MOTORS AMERICA, INC.
