Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the knee airbag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

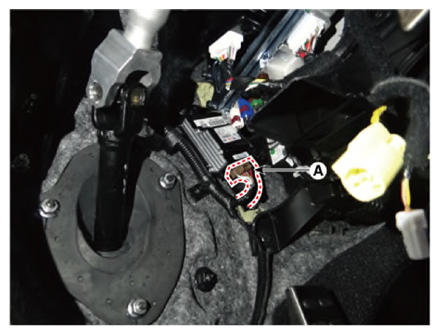

  4. Disconnect the AWD ECU connector (A).
    G14991385Courtesy of KIA MOTORS AMERICA, INC.

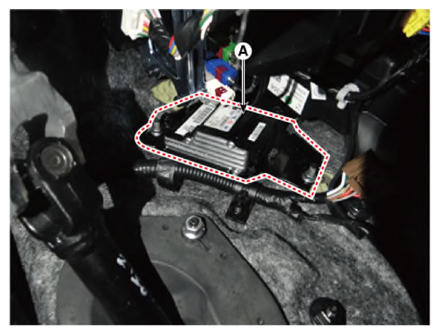

  5. Remove the AWD ECU bracket nuts and then remove the AWD ECU (A).
G14991386Courtesy of KIA MOTORS AMERICA, INC.
