Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Disconnect the negative (-) battery terminal.

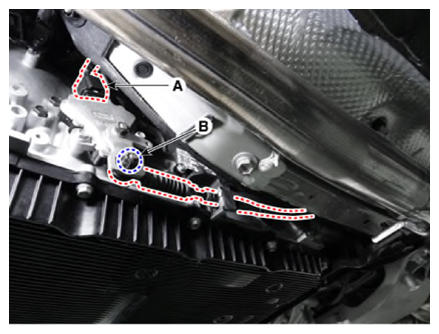

  3. Inhibitor switch connector (A) and remove the nut (B).
    G15000170Courtesy of KIA MOTORS AMERICA, INC.

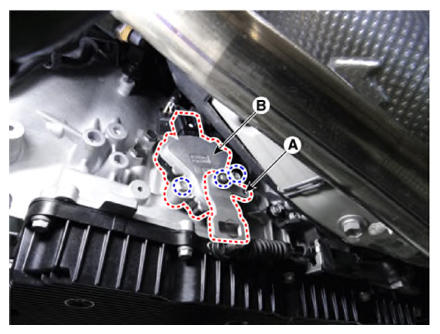

  4. Remove the manual control lever (A) and then remove the inhibitor switch (B).
G15000171Courtesy of KIA MOTORS AMERICA, INC.
