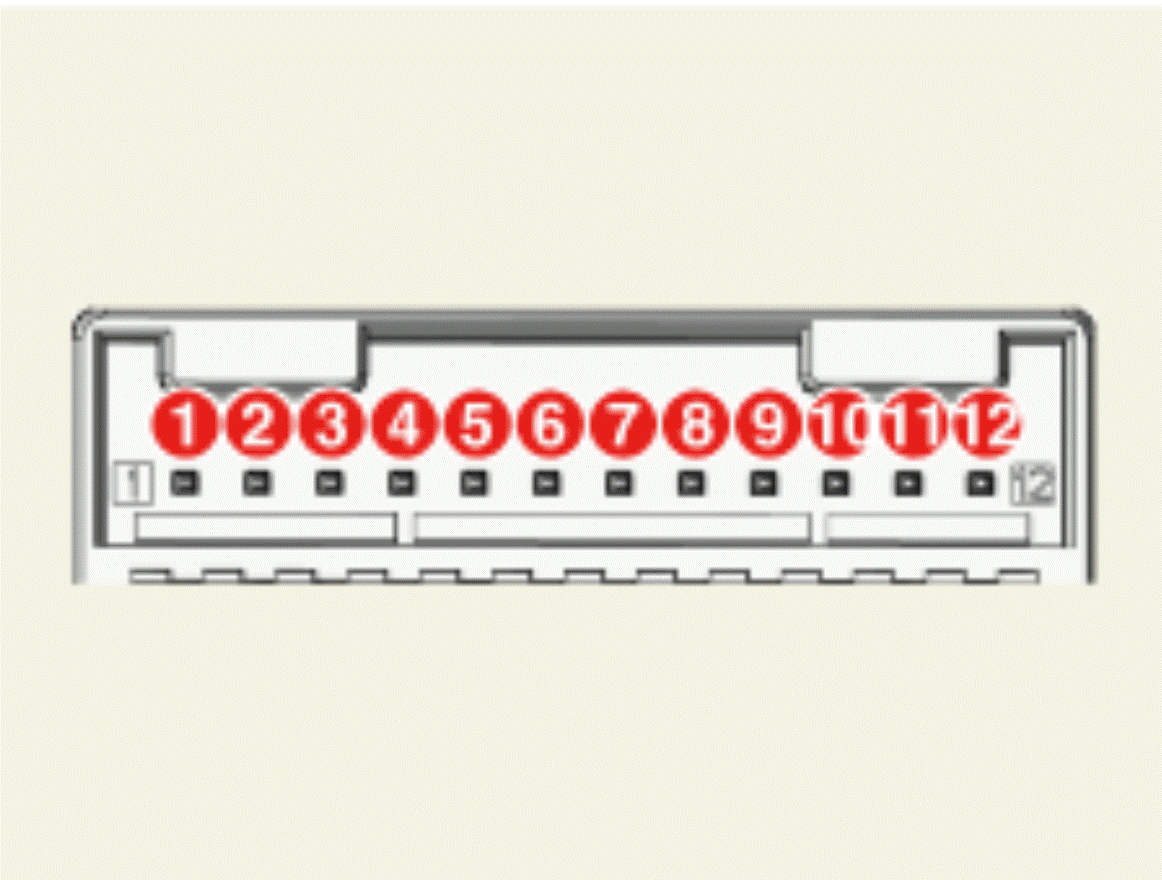

Connector And Terminal Function
| Pin | Function |
|---|---|
| 1 | Ground |
| 2 | Wireless charging indicator (Ground) |
| 3 | Wireless charging indicator (Amber) |
| 4 | Wireless charging indicator (Green) |
| 5 | B-CAN (Low) |
| 6 | B-CAN (High) |
| 7 | - |
| 8 | [With NFC Type] Local-CAN (Low): IAU, Front Door Outside handle |
| 9 | [With NFC Type] Local-CAN (High): IAU, Front Door Outside handle |
| 10 | - |
| 11 | ICU Junction block (Fuse - Module 6) |
| 12 | Battery (+) |
