Fuel Sender: Inspection
- Disconnect battery negative (-) terminal.
- Remove the fuel pump module.
(Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

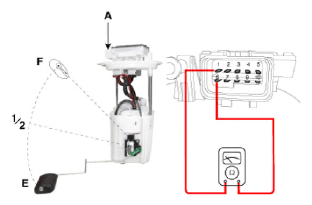

- Measure the resistance between terminals 1 and 6 of Fuel Pump Control Module (FPCM) connector (A) at each float level.
| Terminal | Function |
|---|---|
| 1 | (-) |
| 6 | (+) |
| Floating Position | Resistance (Ω) | Capacity [l (U.S gal., U.S.qt., Imp.qt.)] |
|---|---|---|
| Empty | 298 - 305 | 5.0 (1.32, 5.28, 4.40) |
| 1/2 | 85.5 - 87.5 | 35.3 (9.33, 37.30, 31.06) |
| Full | 14 - 16 | 69.6 (18.39, 73.56, 61.24) |
