Component Inspection: Notes
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

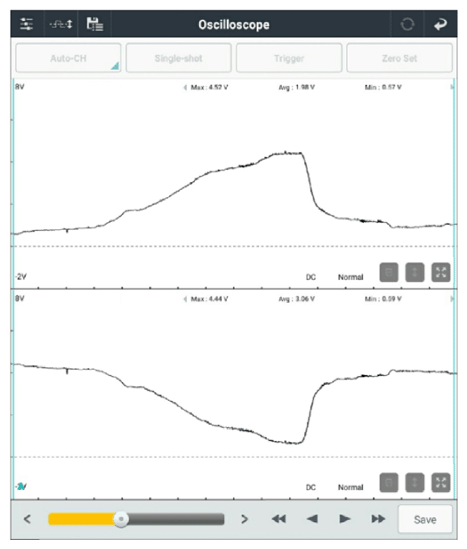

TPS connector | 6 (TPS1 signal) | Chassis ground | - | Fig.1 |
| TPS connector | 4 (TPS2 signal) | Chassis ground | - | ||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the throttle position sensor (ETC motor) and Go to "VERIFICATION OF REPAIR " procedure.
