Terminal Function

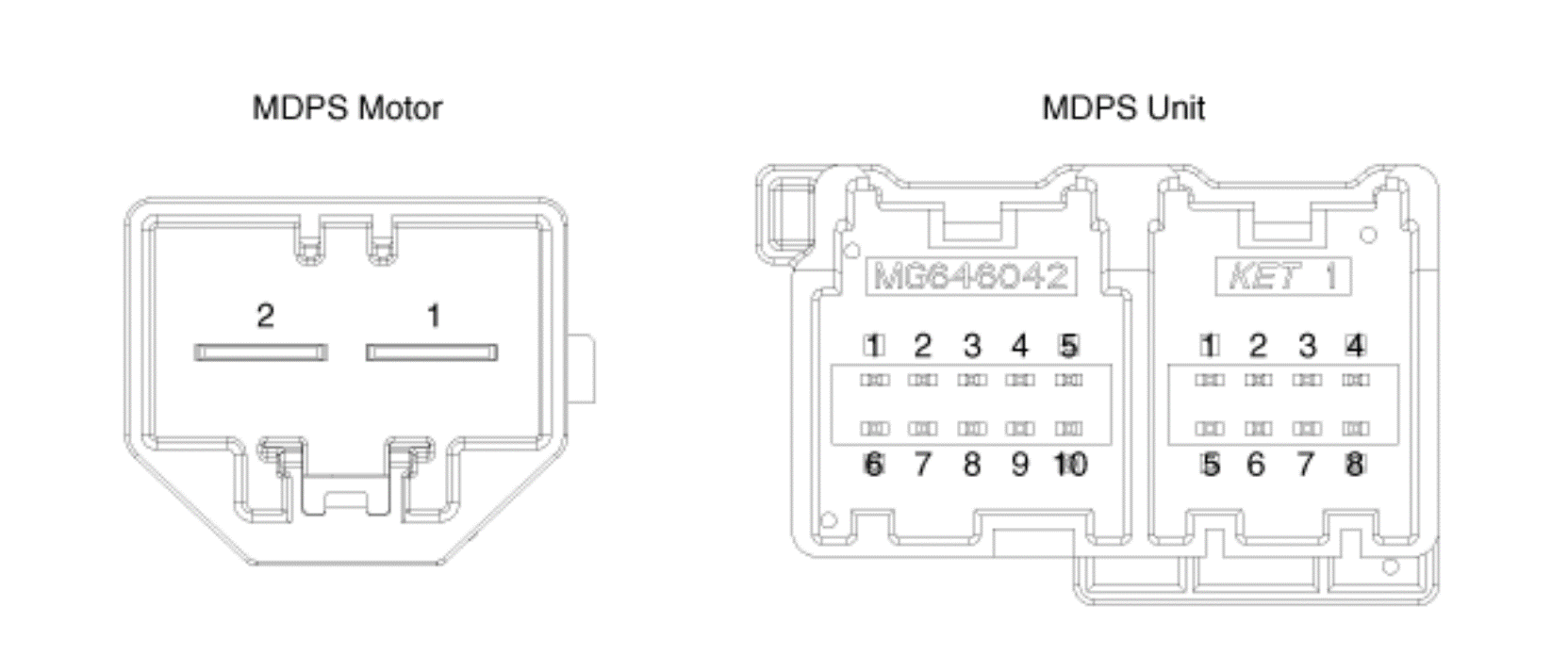

G15709162Courtesy of KIA MOTORS AMERICA, INC.
Type Pin No Description
MDPS power connector 1 Battery +
2 Battery -
Vehicle connector 1 IGN
2 -
3 -
4 -
5 -
6 -
7 HIGH CAN
8 LOW CAN
Torque & Angle sensor connector 1 Torque sensor 2
2 -
3 -
4 Sensor power 3
5 Sensor power 2
6 Sensor power 1
7 Ground 1
8 Torque sensor 1
9 Ground 2
10 Sensor angle
