Bank 1 Exhaust
- Remove the cylinder head cover [RH].
(Refer to Engine Mechanical System - "CYLINDER HEAD COVER ")

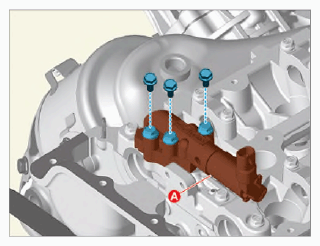

- Remove the CVVT Oil Control Valve (OCV) (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
