Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

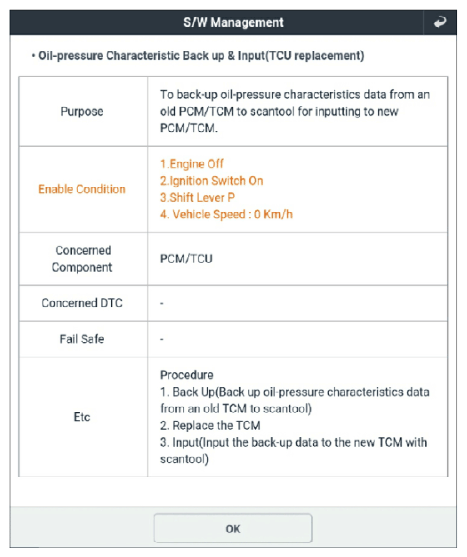

G15727581Courtesy of KIA MOTORS AMERICA, INC.

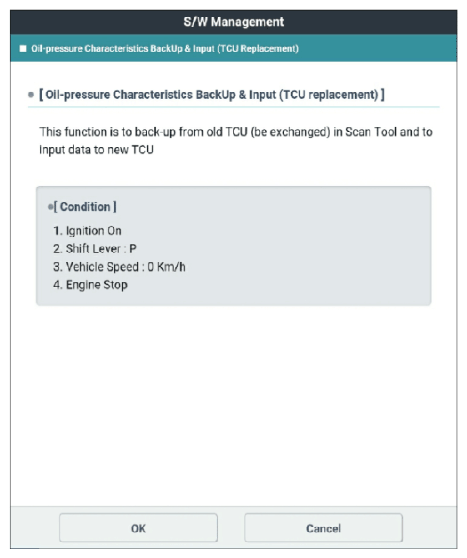

G15727582Courtesy of KIA MOTORS AMERICA, INC.

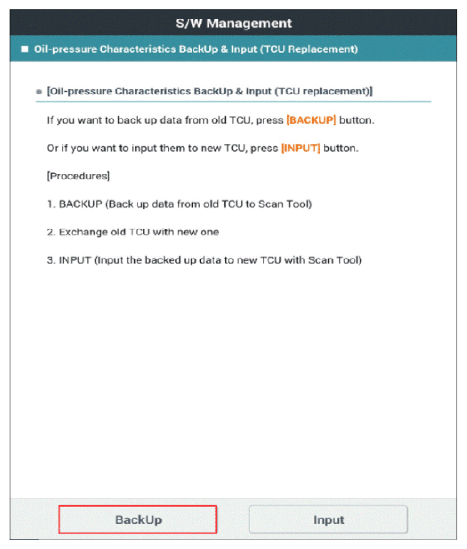

G15727583Courtesy of KIA MOTORS AMERICA, INC.

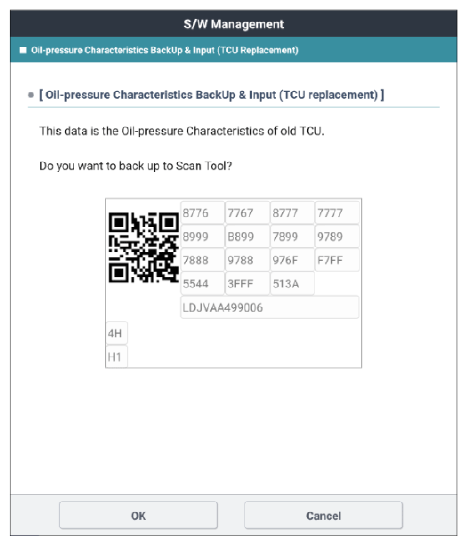

G15727584Courtesy of KIA MOTORS AMERICA, INC.

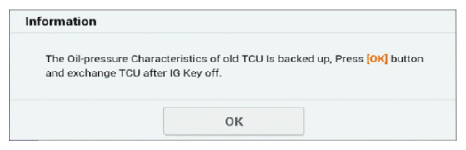

G15727585Courtesy of KIA MOTORS AMERICA, INC.

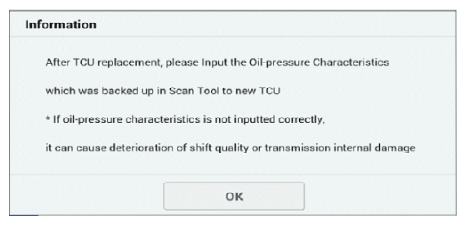

G15727586Courtesy of KIA MOTORS AMERICA, INC.

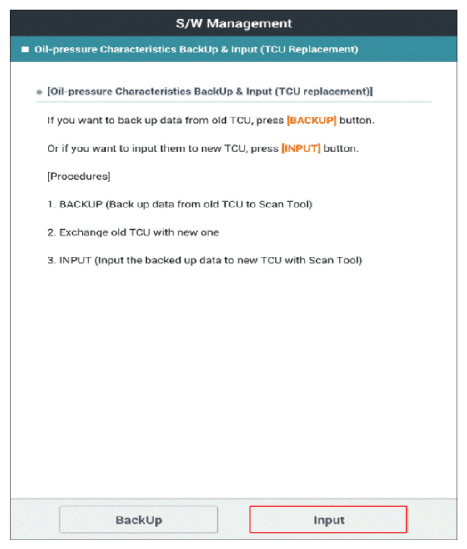

G15727587Courtesy of KIA MOTORS AMERICA, INC.

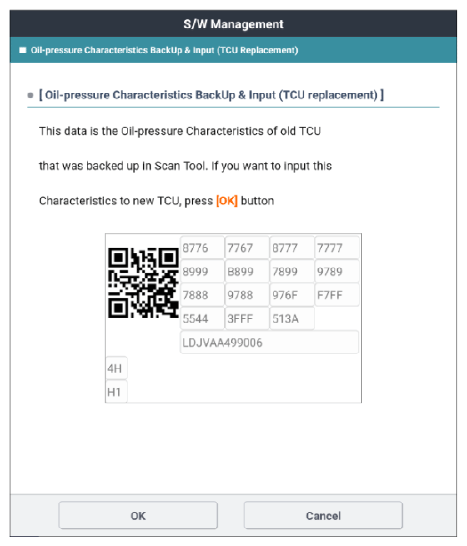

G15727588Courtesy of KIA MOTORS AMERICA, INC.

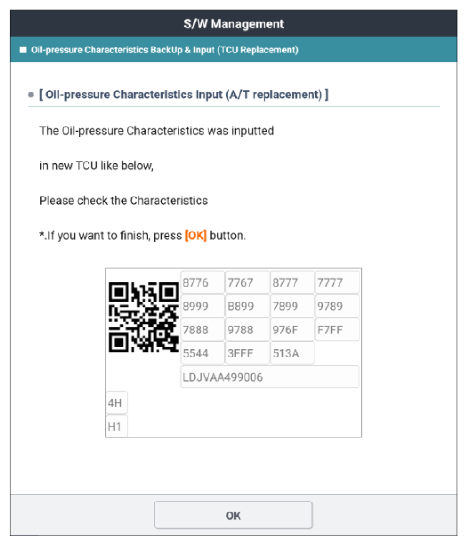

G15727589Courtesy of KIA MOTORS AMERICA, INC.
