Timing System Components With Torque Specifications

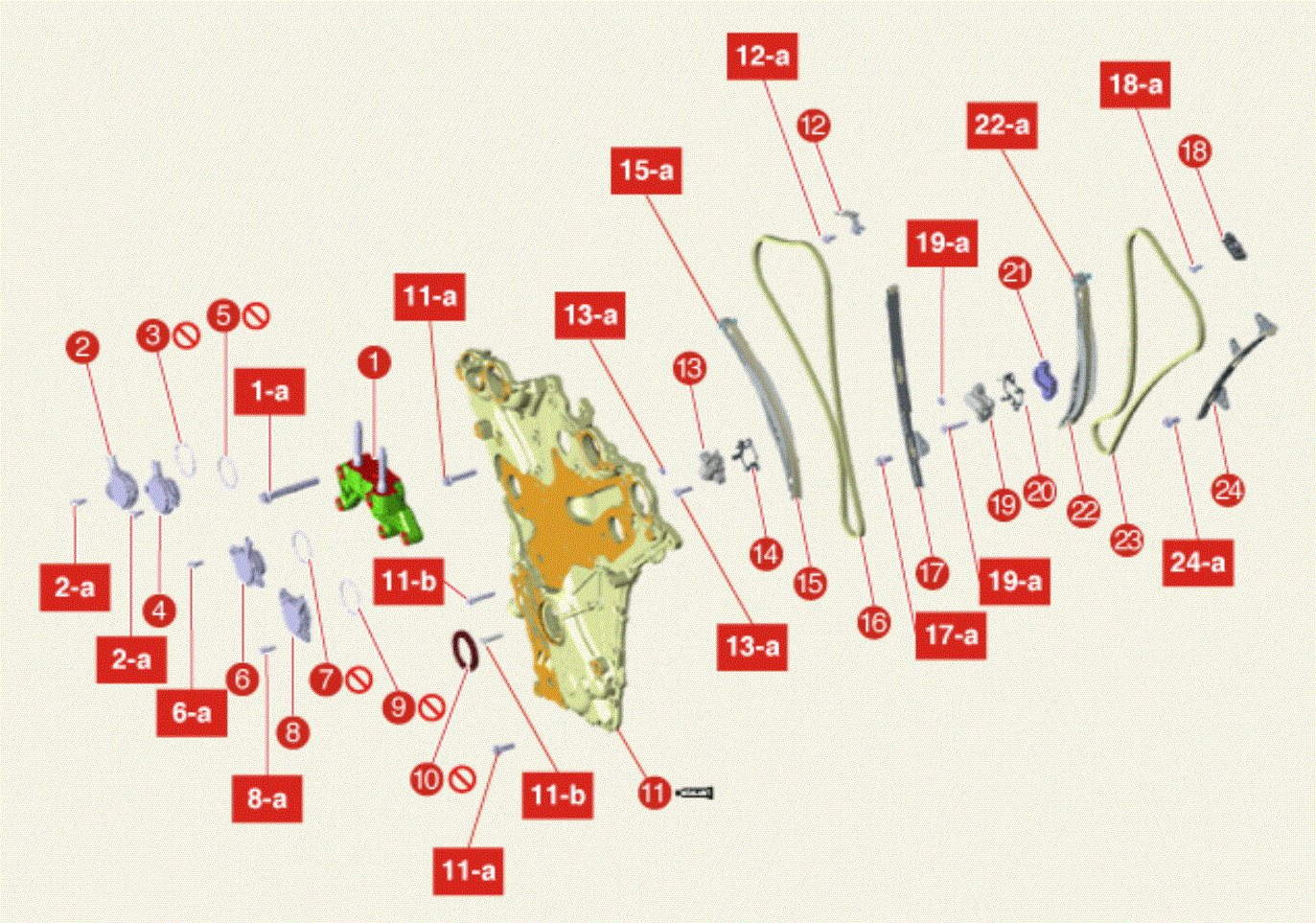

G14796911Courtesy of KIA MOTORS AMERICA, INC.

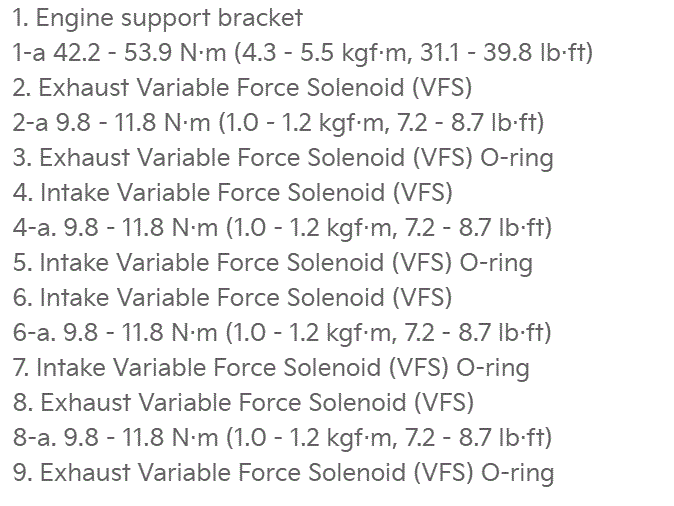

G00639740Courtesy of KIA MOTORS AMERICA, INC.

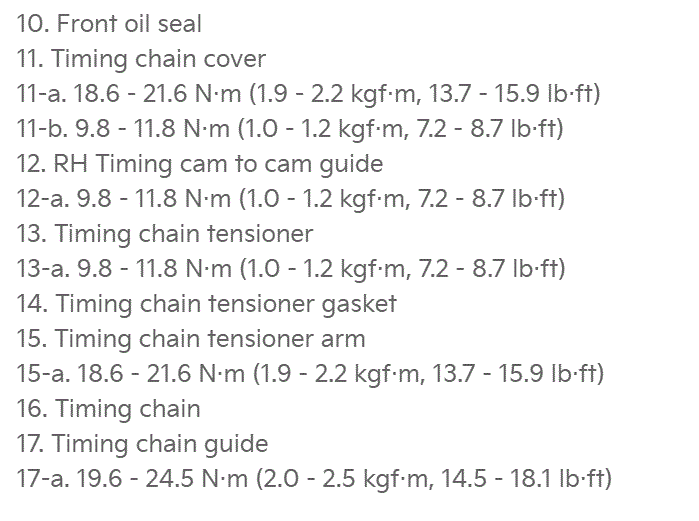

G00639741Courtesy of KIA MOTORS AMERICA, INC.

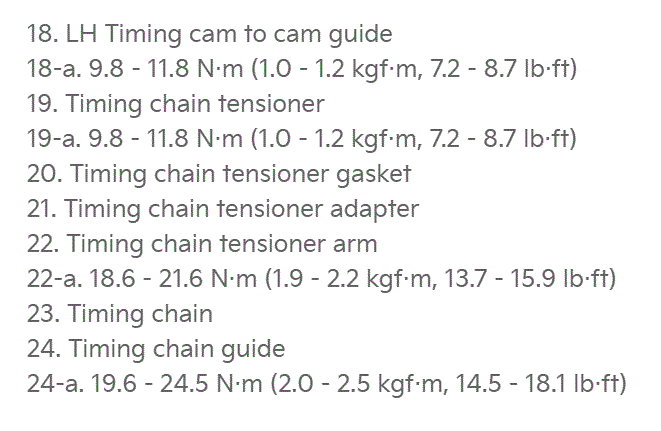

G00639742Courtesy of KIA MOTORS AMERICA, INC.
