Steering Wheel: Inspection

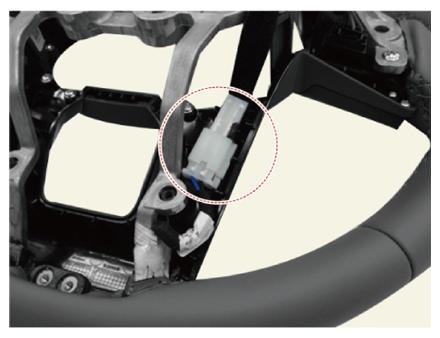

Measure a resistance of NTC and heated pad.
- NTC resistance [Blue (3)/Black, Red (4)] - 8.88 ~ 11.27 kΩ [at 23 - 7°C (73.4 - 80.6°F)]
- Heated pad resistance [Yellow (2), Black (1)] - 1.60 ~ 2.00 Ω [at 21 - 23°C (69.8 - 73.4°F)]
Courtesy of KIA MOTORS AMERICA, INC.
