Alignment (4WD): Adjustment: Rear: Notes

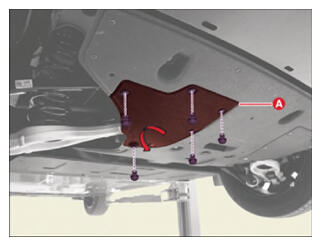

Remove the fasteners, and then separate the service cover (A) in the direction of the arrow to adjust rear alignment.

G15811144Courtesy of KIA MOTORS AMERICA, INC.
