Power Window Sub Switch

  1. Remove the passenger side front door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

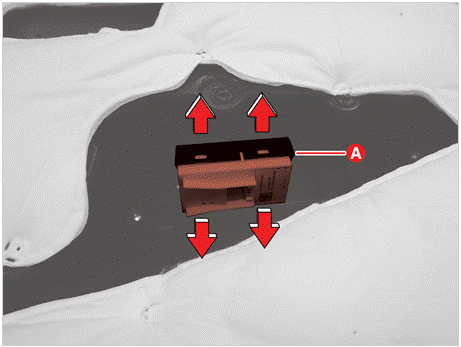

  2. Remove the power window sub switch (A) after pushing the hooks in the direction of arrow.
G15812714Courtesy of KIA MOTORS AMERICA, INC.

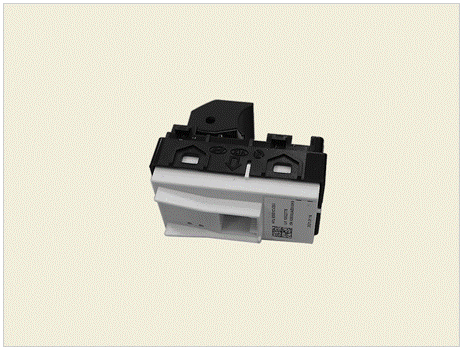

G15812715Courtesy of KIA MOTORS AMERICA, INC.
