Steering Column Module (SCM) Switch

Turn the IG OFF, separate the auxiliary battery (12 V) (-) terminal, and disconnect the high voltage service interlock connector.

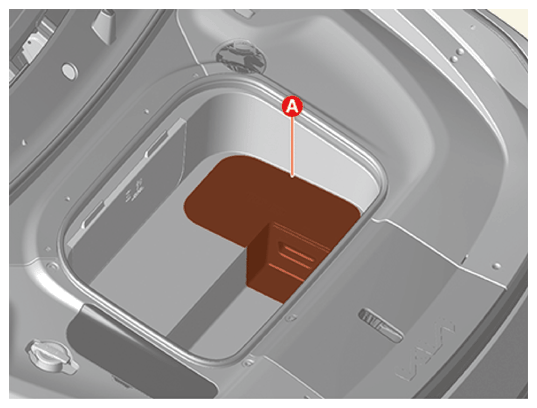

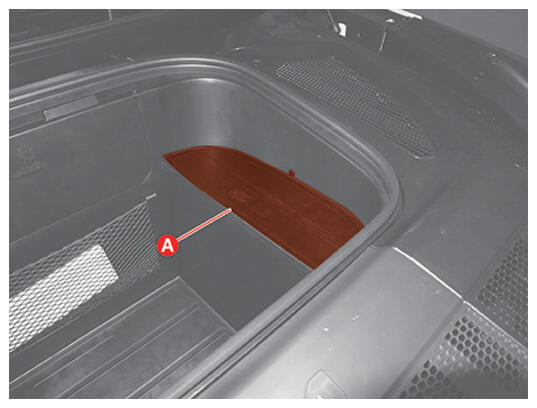

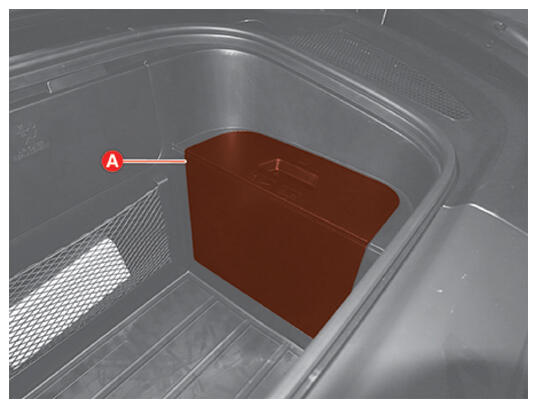

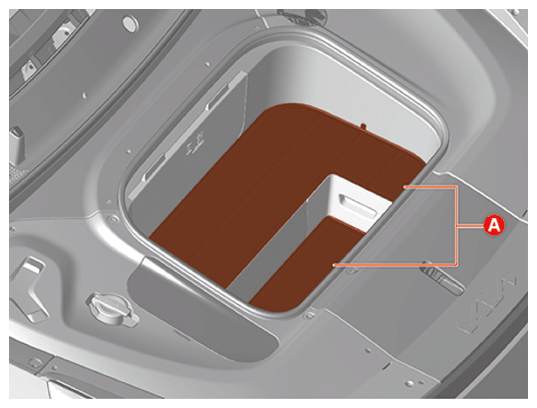

Remove the front trunk pad (A).

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[4WD]

Courtesy of KIA MOTORS AMERICA, INC.

Remove the auxiliary battery (12 V) service cover (A).

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[4WD]

Courtesy of KIA MOTORS AMERICA, INC.

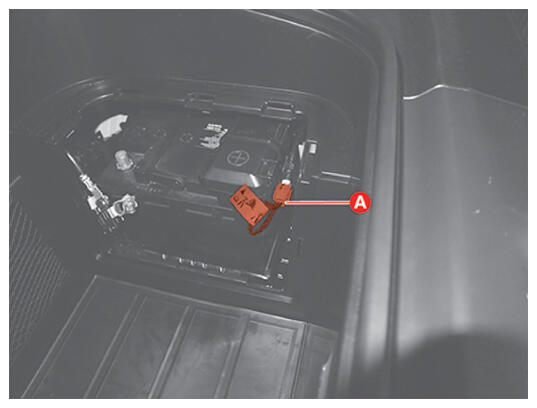

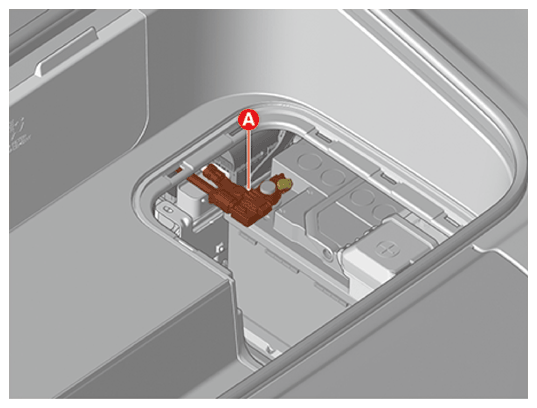

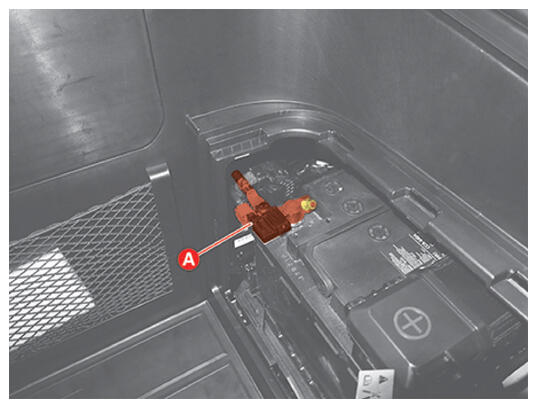

Disconnect the auxiliary battery (12 V) negative (-) terminal (A) after loosening the nut.

Tightening torque: 7.8 - 9.8 N.m (0.8 - 1.0 kgf-m, 5.8 - 7.2 lb-ft)

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[4WD]

Courtesy of KIA MOTORS AMERICA, INC.

Remove the high voltage service interlock connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

WARNING: Wait more than 5 minutes for capacitor of the high voltage battery system to be discharged completely.

Remove the steering column lower shroud panel.
(Refer to Body - " STEERING COLUMN SHROUD PANEL ")

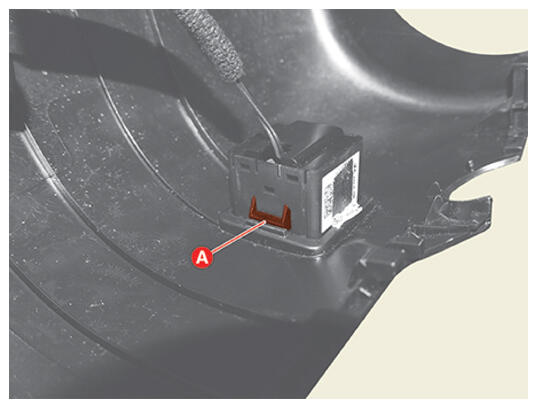

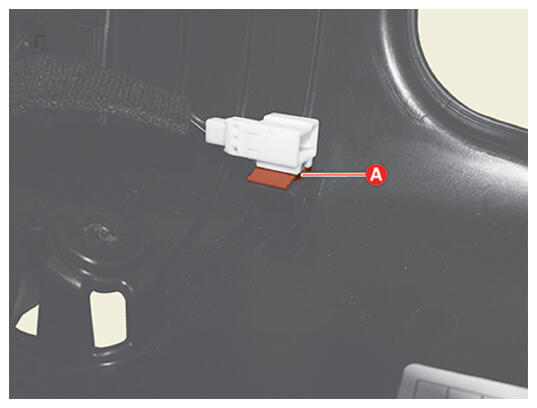

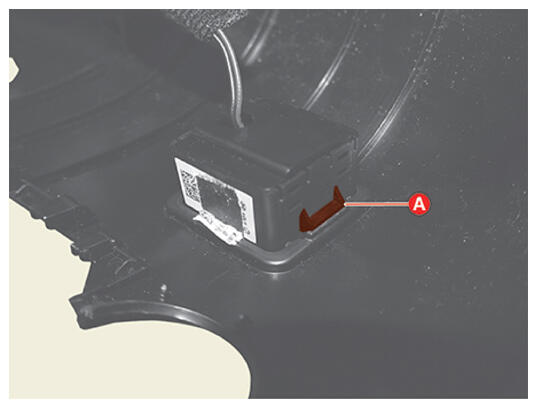

Separate the steering column module switch connector clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

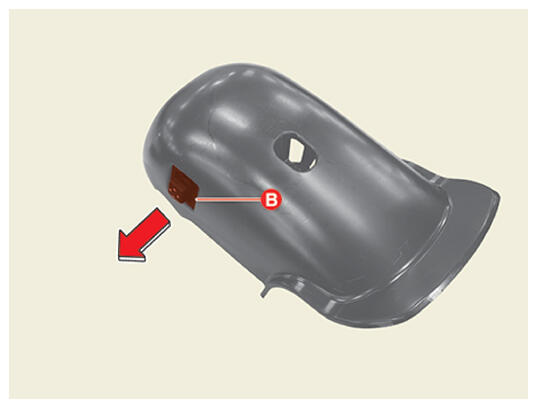

Remove the steering column module switch (B) pushing in direction of the arrow while pressing the hinges (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
