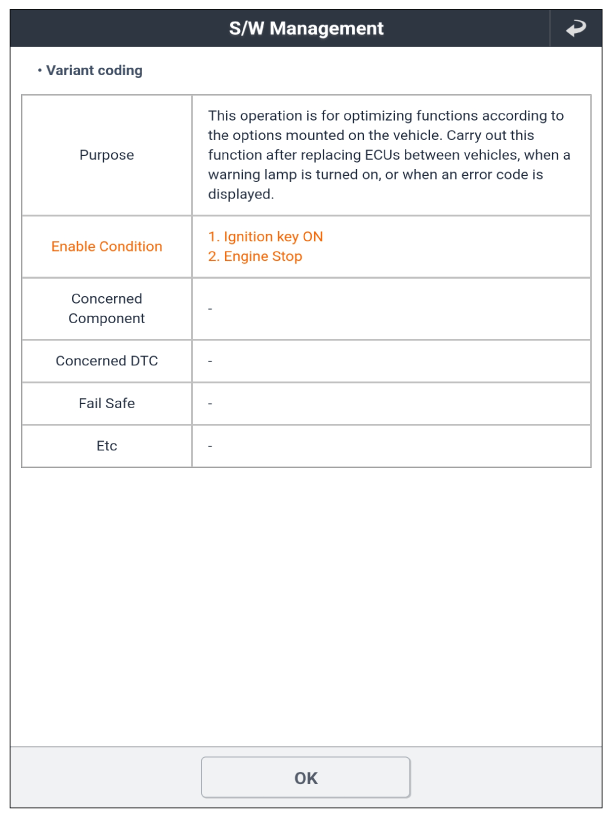

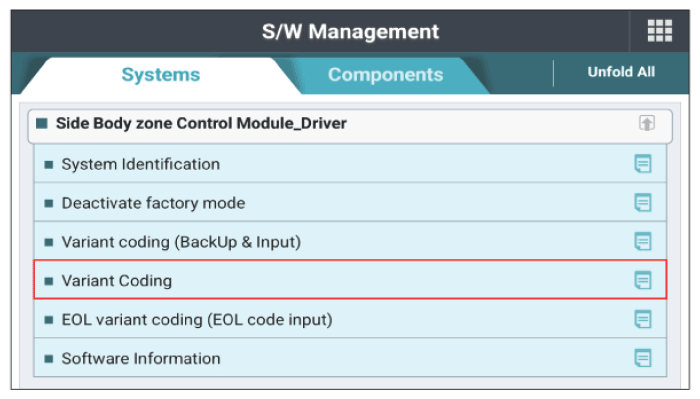

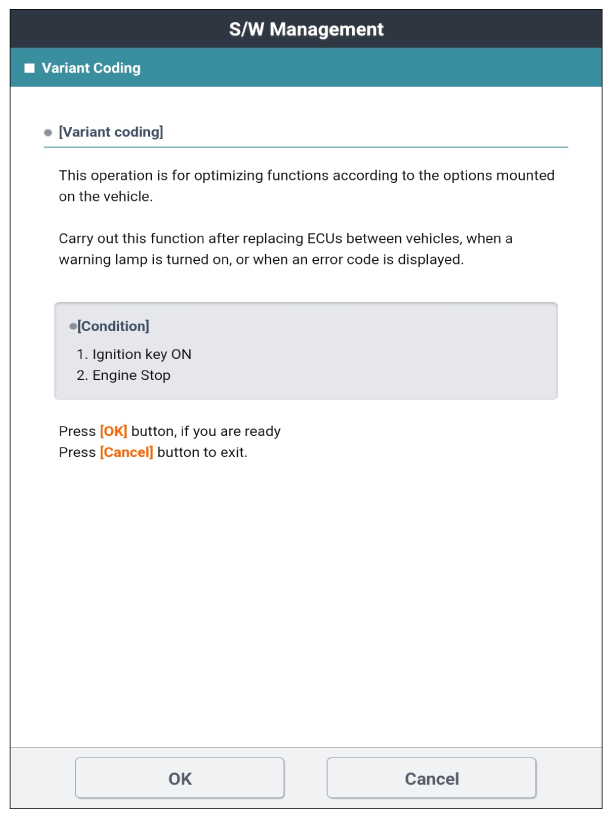

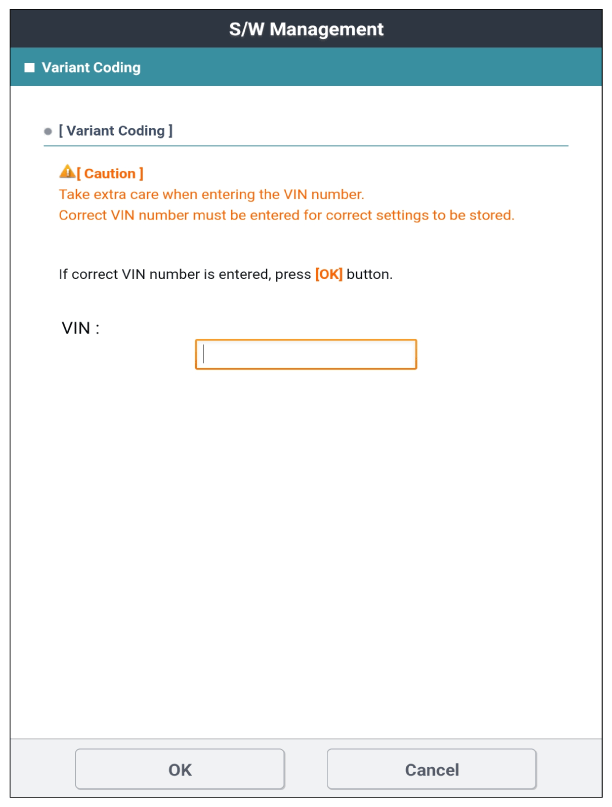

When variant coding is required

When SBCM_DRV is exchanged.
When B100051 code occurs.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good
- This fault code is caused by variant coding procedure is not conducted after replacing the SBCM_DRV. Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace control unit that causing the fault and then Go to "VERIFICATION OF REPAIR " procedure.
  * If a module is replaced, perform the relevant "Vehicle S/W Management" procedure.
