Components And Components Location: Component

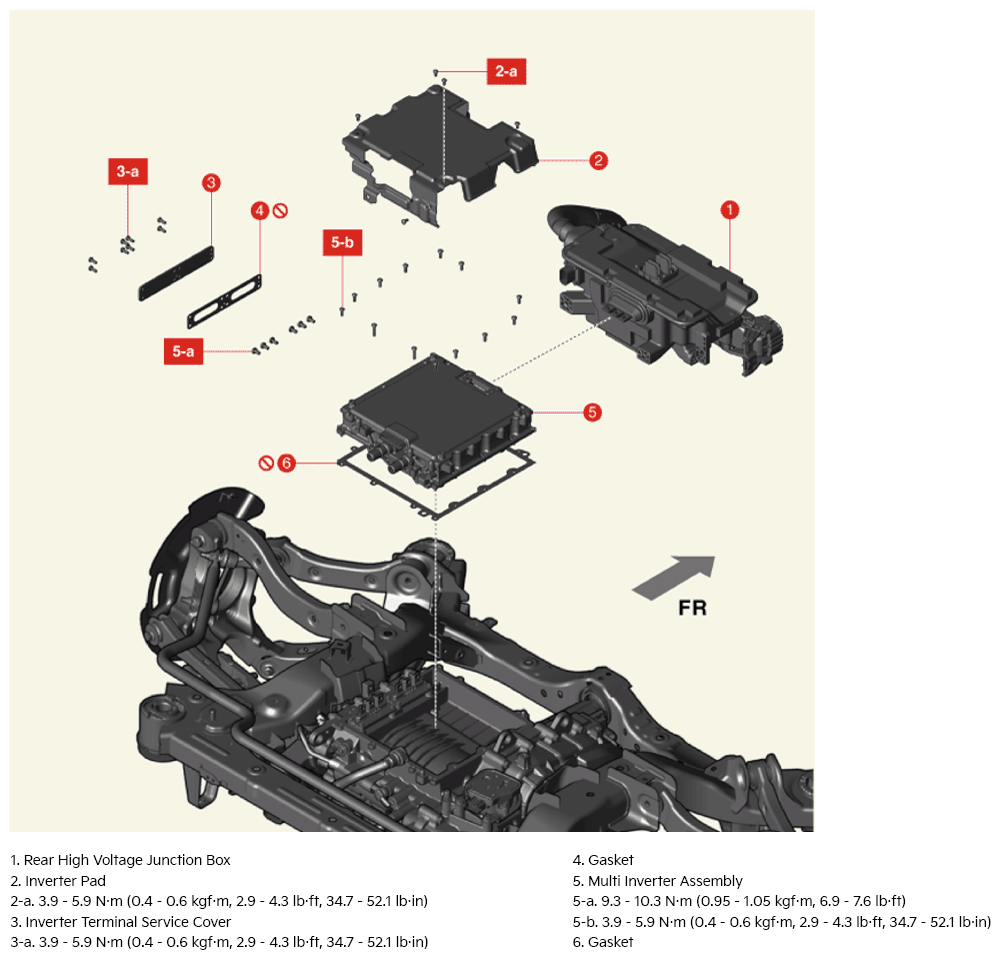

Fig 1: Multi Inverter Assembly Components Location With Torque Specifications
G16898035Courtesy of KIA MOTORS AMERICA, INC.
