Components & Components Location: Component

[2WD Type]

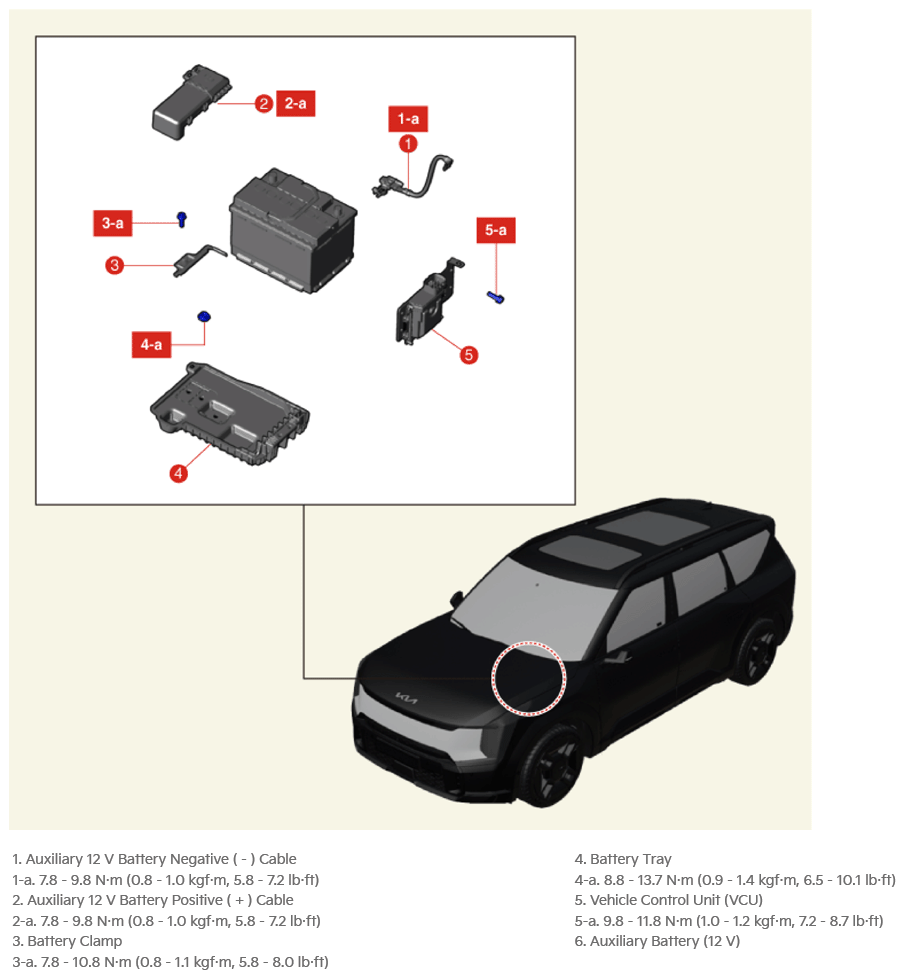

Fig 1: Vehicle Control Unit Components Location With Torque Specifications (2WD Type)
G16875112Courtesy of KIA MOTORS AMERICA, INC.

[4WD Type]

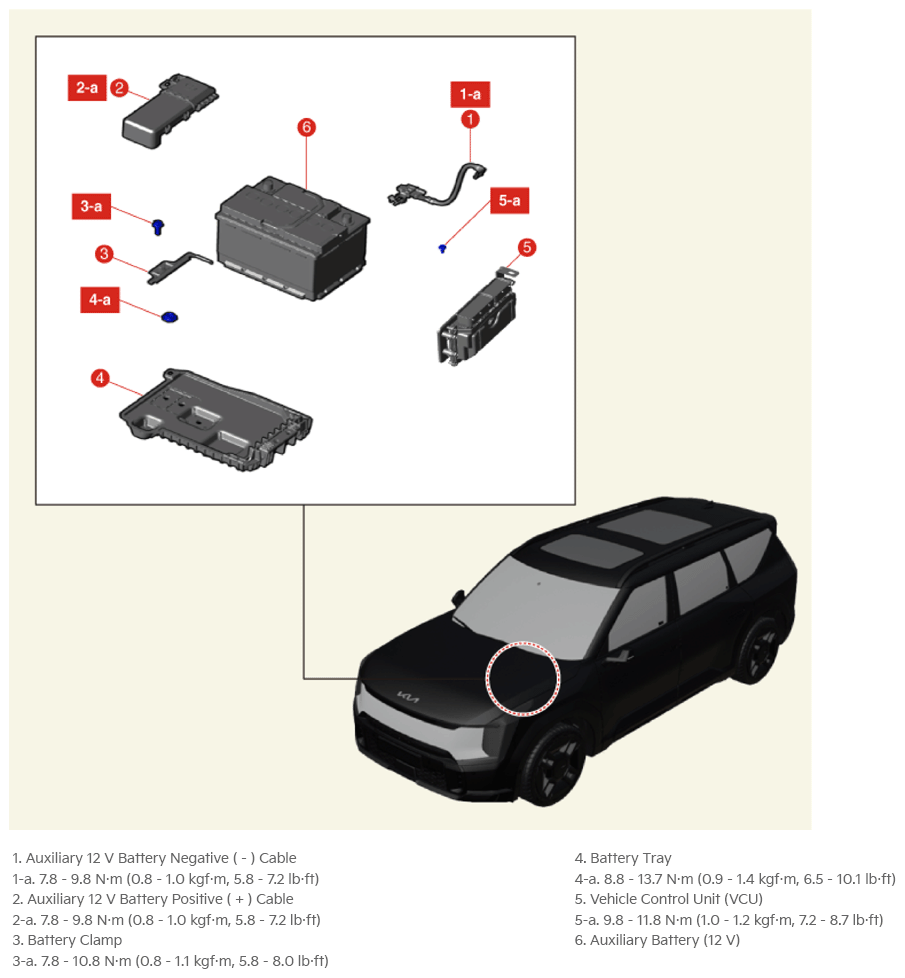

Fig 2: Vehicle Control Unit Components Location With Torque Specifications (4WD Type)
G16875113Courtesy of KIA MOTORS AMERICA, INC.
