Circuit Inspection: Notes

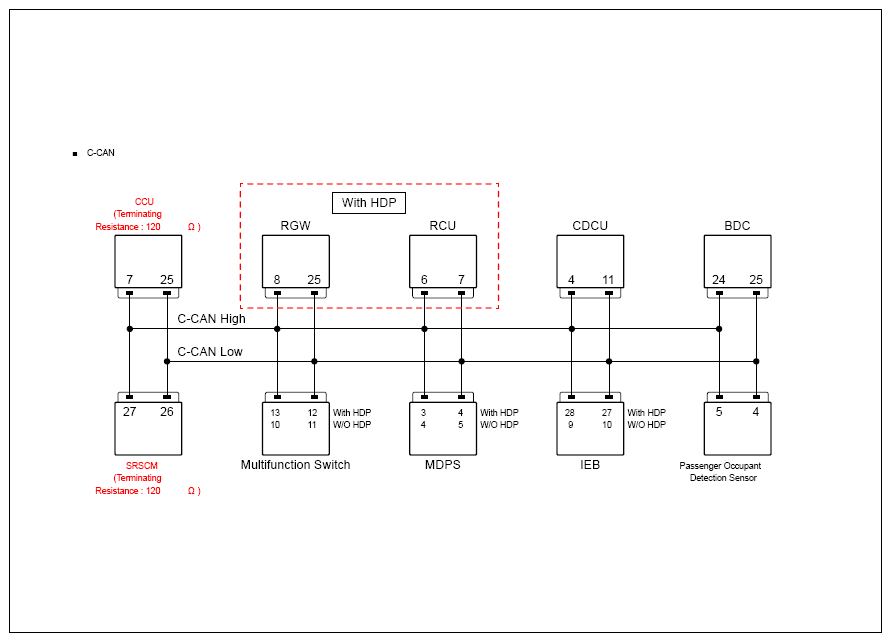

G16884231Courtesy of KIA MOTORS AMERICA, INC.

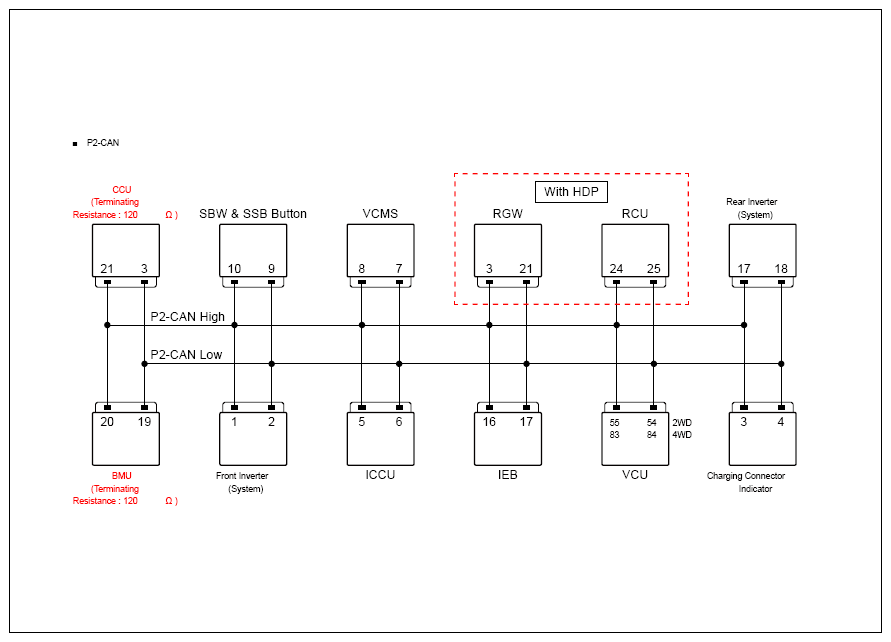

G16884232Courtesy of KIA MOTORS AMERICA, INC.
G16884233Courtesy of KIA MOTORS AMERICA, INC.
