Circuit Inspection: Notes

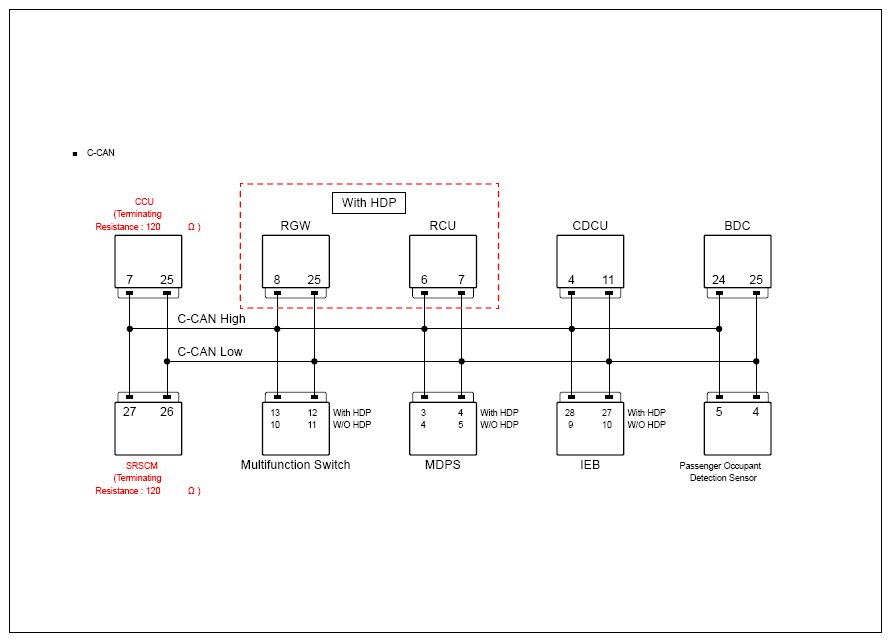

G16884289Courtesy of KIA MOTORS AMERICA, INC.

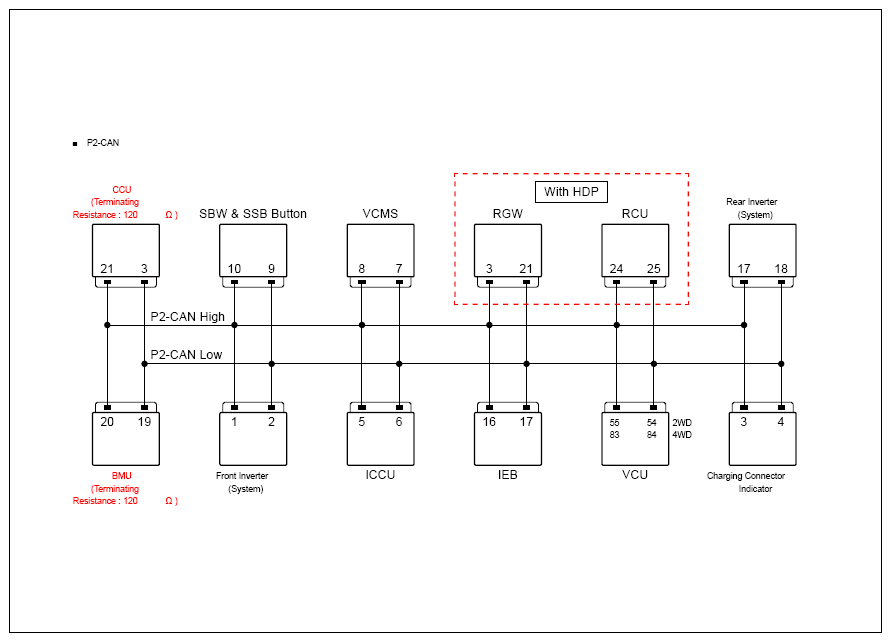

G16884290Courtesy of KIA MOTORS AMERICA, INC.
G16884291Courtesy of KIA MOTORS AMERICA, INC.
