DTC B1007-55: AFLS Present Error - Coding Code Error
>>
Wiring Inspection
>>
Circuit Inspection
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

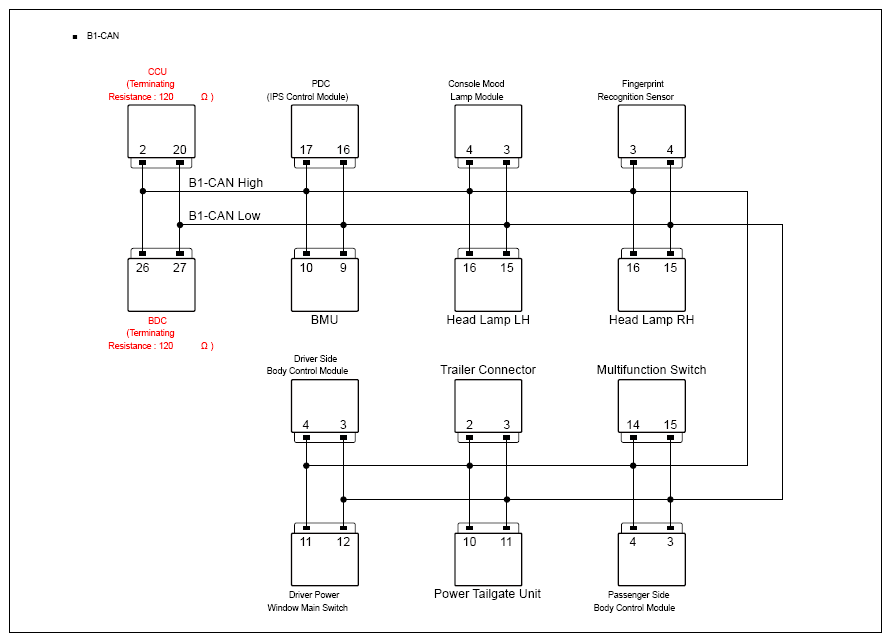

Circuit Inspection: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
