Circuit Inspection: Notes

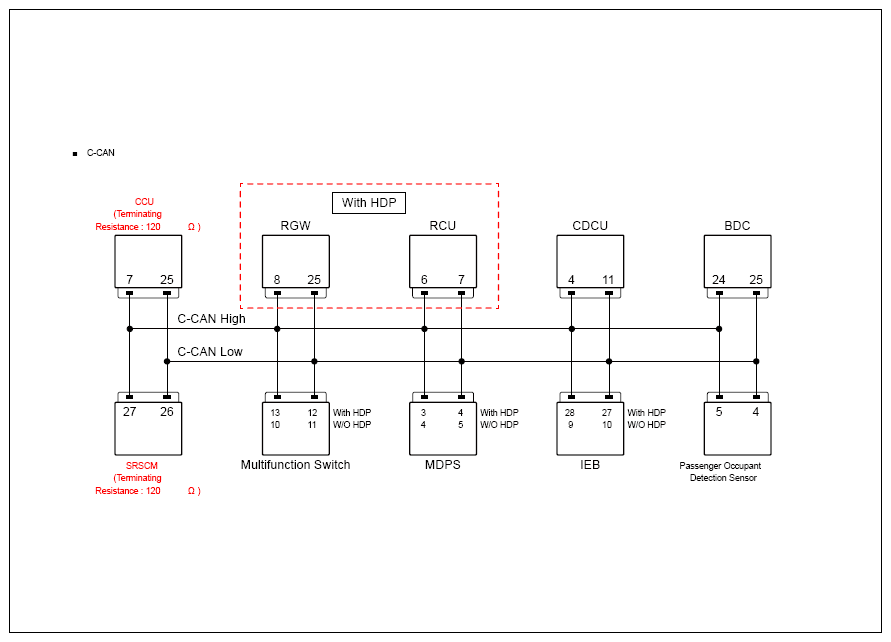

G16884481Courtesy of KIA MOTORS AMERICA, INC.

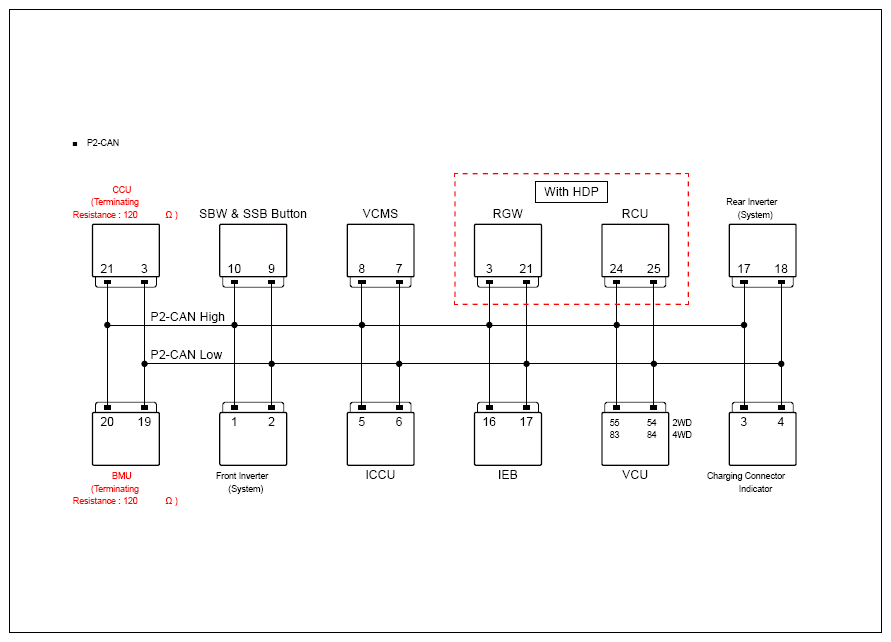

G16884482Courtesy of KIA MOTORS AMERICA, INC.
G16884483Courtesy of KIA MOTORS AMERICA, INC.
