Components And Components Location: Components

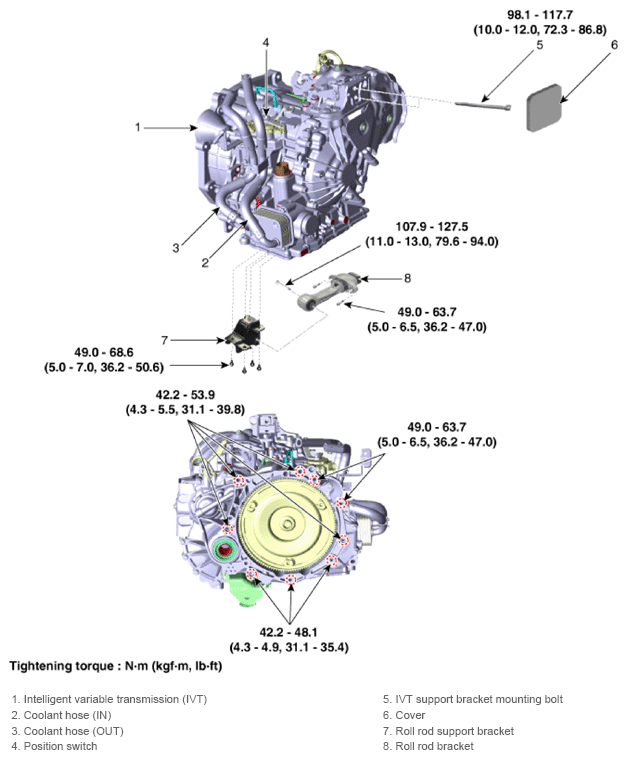

Fig 1: Intelligent Variable Transmission Components Location With Torque Specification
G14564587Courtesy of KIA MOTORS AMERICA, INC.
