Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference
1. Ignition "ON".	1. Connect KDS to Data Link Connector (DLC). 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

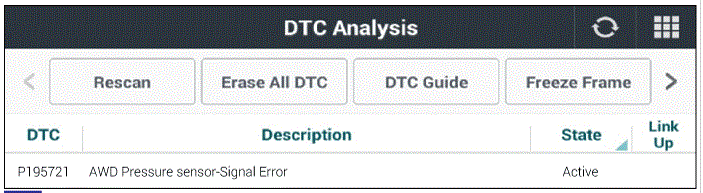

Fig.1) DTC status

Active Fault

• Go to "Monitor KDS Data " procedure.

History/Pending Fault

• Go to "Verification Of Repair " procedure.
