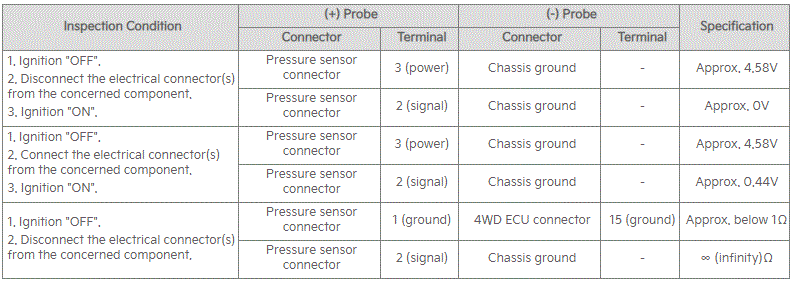

Circuit Inspection
Good
• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
• If problem still occurs, replace pressure sensor and go to "Verification Of Repair " procedure.
No Good
• Repair as necessary and then go to "Verification Of Repair " procedure.
