Components & Components Location: Component

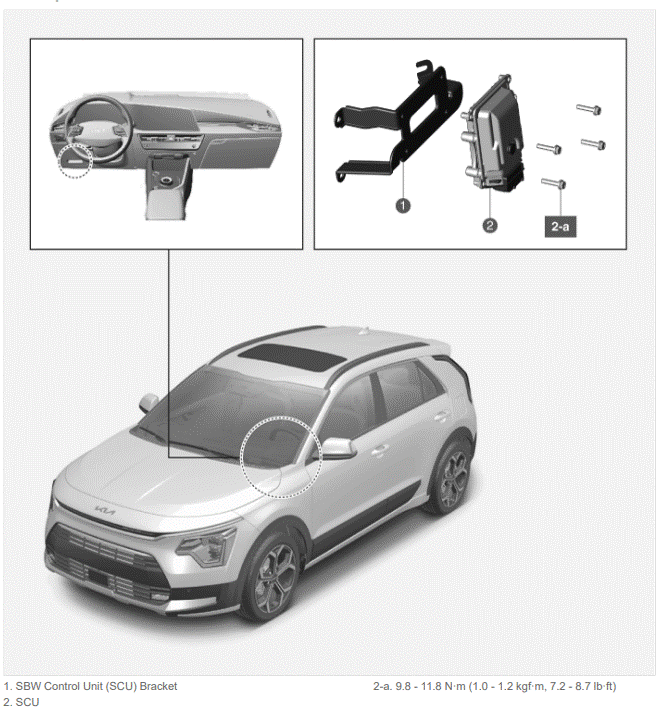

Fig 1: SBW Control Unit Components Location With Torque Specification
G15767638Courtesy of KIA MOTORS AMERICA, INC.
