Removal And Installation: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
When working on high voltage system, make sure to check the PERSONAL PROTECTIVE EQUIPMENT (PPE) and HIGH VOLTAGE SHUT-OFF PROCEDURES .

Remove the fuel pump module.
(Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

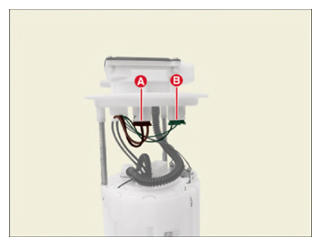

Disconnect the fuel pump connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

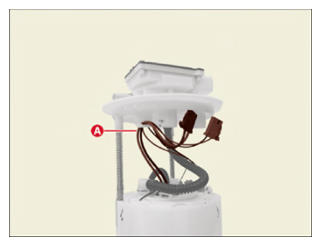

Separate wirings (A) from the holder.

Courtesy of KIA MOTORS AMERICA, INC.

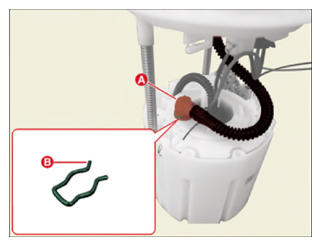

Separate the feed tube (A) after removing the fixing clip (B).

Courtesy of KIA MOTORS AMERICA, INC.

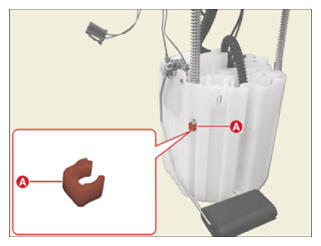

Remove the stopper (A) from the plate pipe.

Courtesy of KIA MOTORS AMERICA, INC.

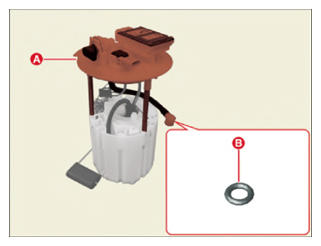

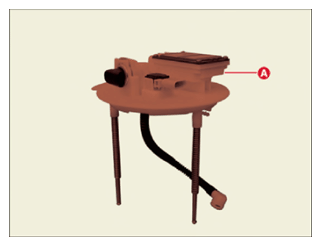

Remove the plate assembly (A) and O-ring (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
