Removal And Installation: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
When working on high voltage system, make sure to check the PERSONAL PROTECTIVE EQUIPMENT (PPE) and HIGH VOLTAGE SHUT-OFF PROCEDURES .

Shut off the high voltage circuit.
(Refer to Dual Clutch Transmission System - "HIGH VOLTAGE SHUT-OFF PROCEDURES ")

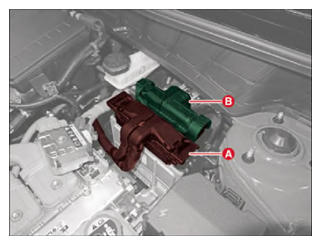

Separate the ECM connectors (A) and TCM connectors (B).

Courtesy of KIA MOTORS AMERICA, INC.

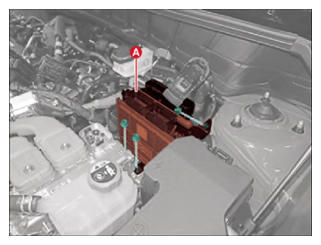

Remove the ECM and TCM (A) after removing the nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

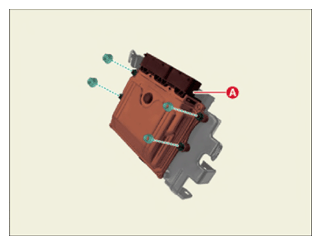

Remove the TCM (A) after removing the nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
