Removal And Installation: Removal

Remove the clutch actuator assembly.
(Refer to Dual Clutch Control System - "CLUTCH ACTUATOR ASSEMBLY ")

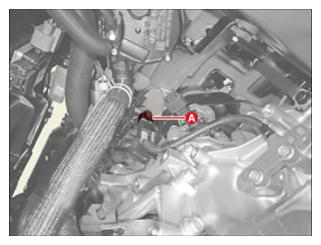

Disconnect the input speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

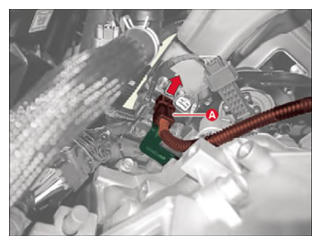

Remove the input speed sensor connector (A) from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.

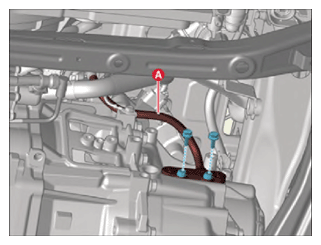

Remove the input speed sensor (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
