Components And Components Location: Component

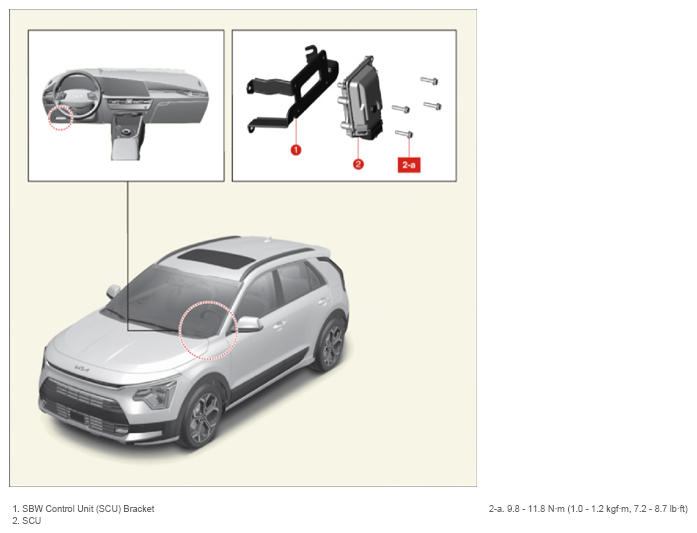

Fig 1: SBW Control Unit (SCU) Components Location With Torque Specifications
G15788284Courtesy of KIA MOTORS AMERICA, INC.
