Engine Control System Diagnosis - 1.6L (8 Of 8)
>>
DTC U2002-00: Lost Communication With CVVD Motor Control Module
>>
DTC Information
>>
Diagnostic Flow Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

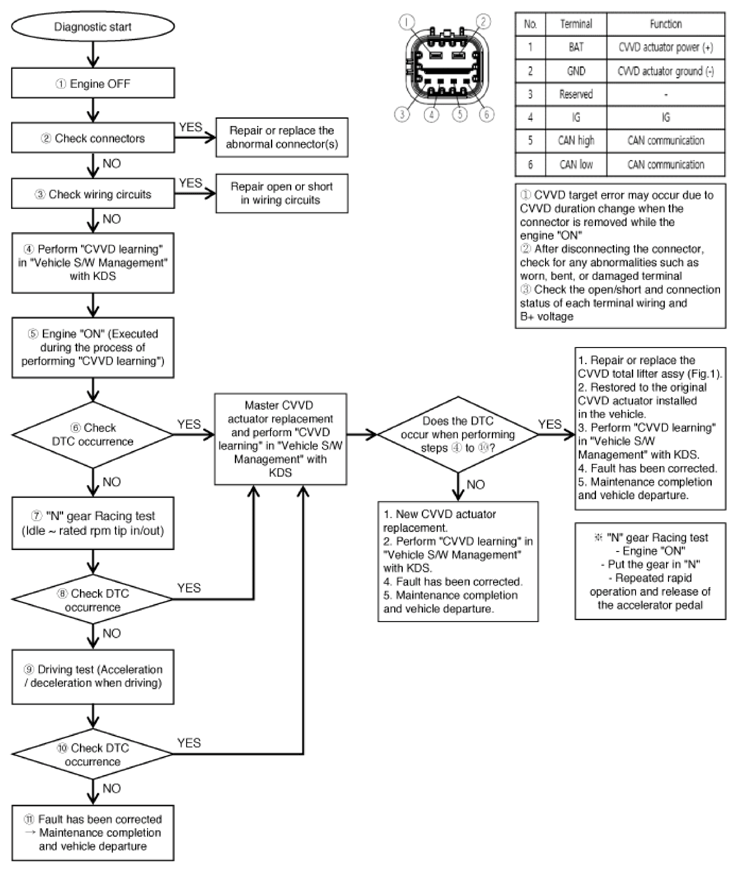

Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
