Connector And Terminal Function

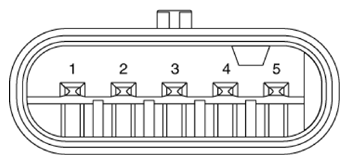

G14956995Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Sensor power (5 V)
2 Sensor ground
3 Sensor signal
4 DC motor (+)
5 DC motor (-)
