FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

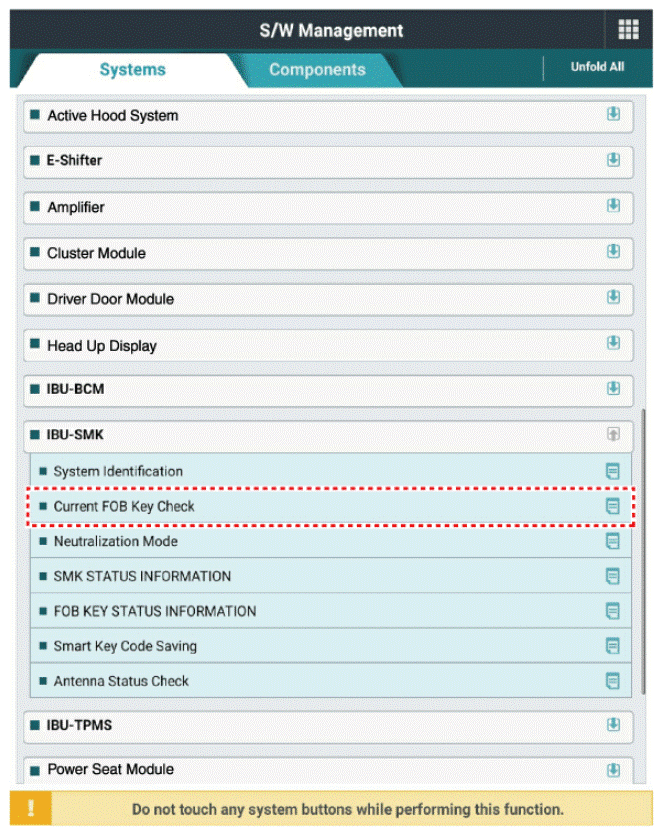

G15717150Courtesy of KIA MOTORS AMERICA, INC.

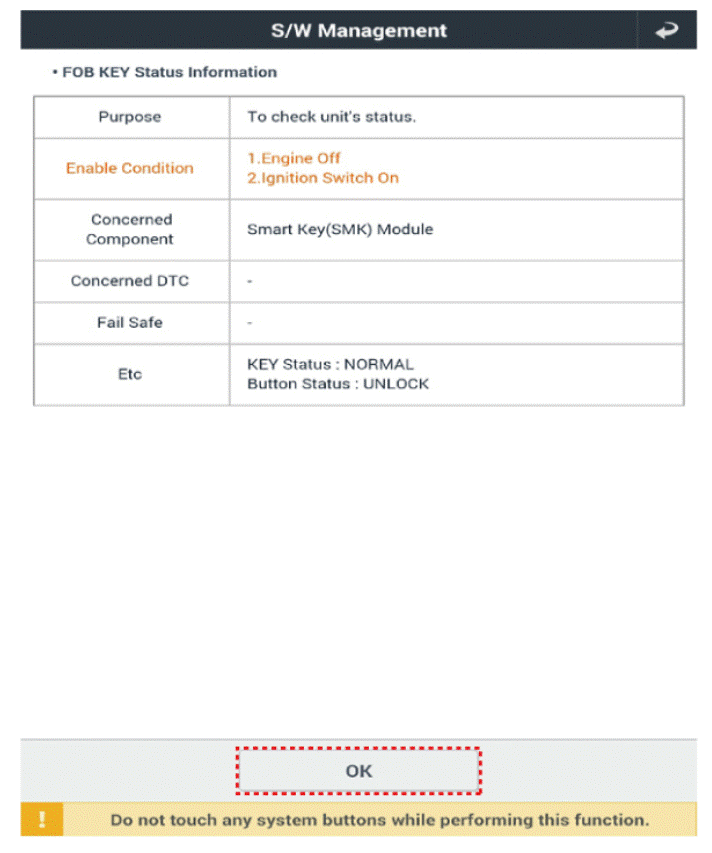

G15717151Courtesy of KIA MOTORS AMERICA, INC.

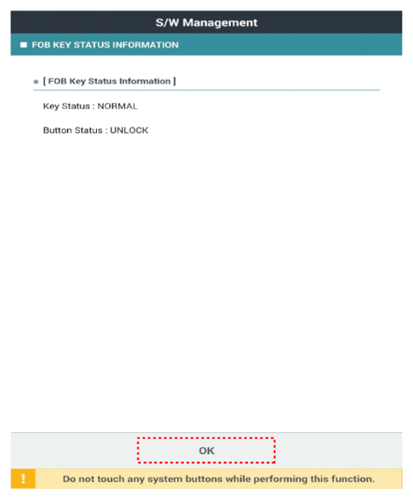

G15717152Courtesy of KIA MOTORS AMERICA, INC.
