Driver Power Window Switch

Remove the front door trim [Driver's Side].
(Refer to Body - "FRONT DOOR TRIM ")

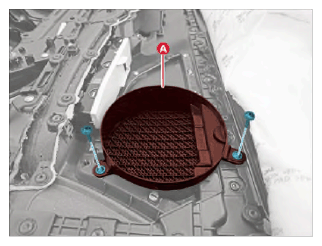

Remove the door speaker gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

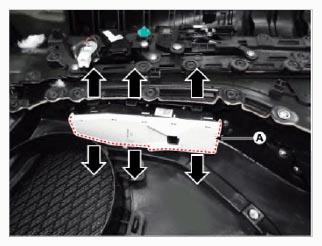

Remove the driver power window switch (A) after pulling the hooks in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.
