Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECM connector | 75 (Memory power) | Chassis ground | - | B+ |
| ECM connector | 41 (ON/START Input) | Chassis ground | - | B+ | |
|
ECM connector | 1, 2, 4 (ground) | Chassis ground | - | Approx. below 1Ω |
|

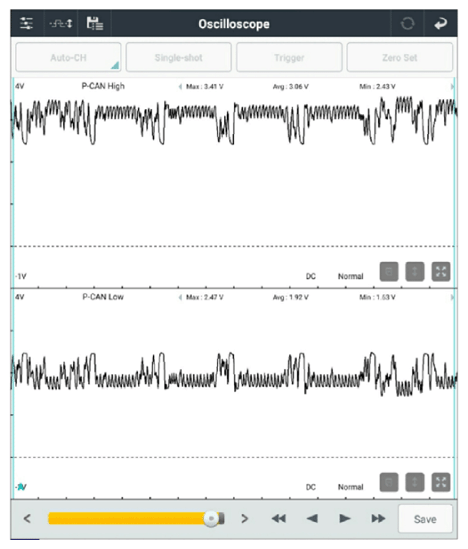

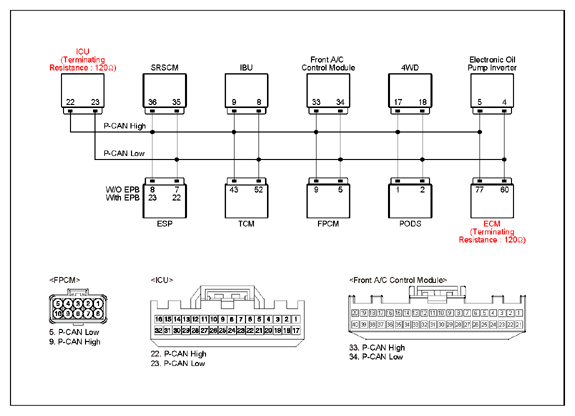

ICU connector | 22 (P-CAN high) | Chassis ground | - | Fig.1 |
| ICU connector | 23 (P-CAN low) | Chassis ground | - | ||
|

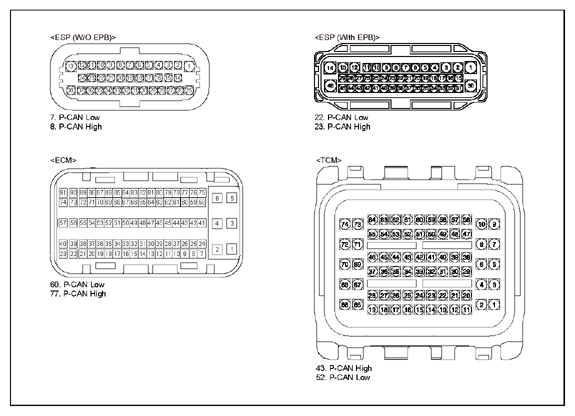

ICU connector | 22 (P-CAN high) | ECM connector | 77 (P-CAN high) | Approx. below 1Ω |
| ICU connector | 23 (P-CAN low) | ECM connector | 60 (P-CAN low) | Approx. below 1Ω | |
|

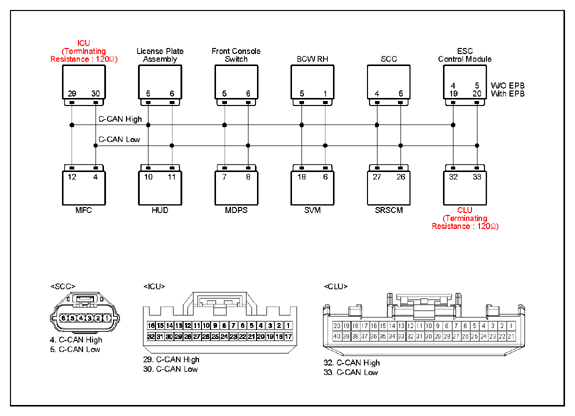

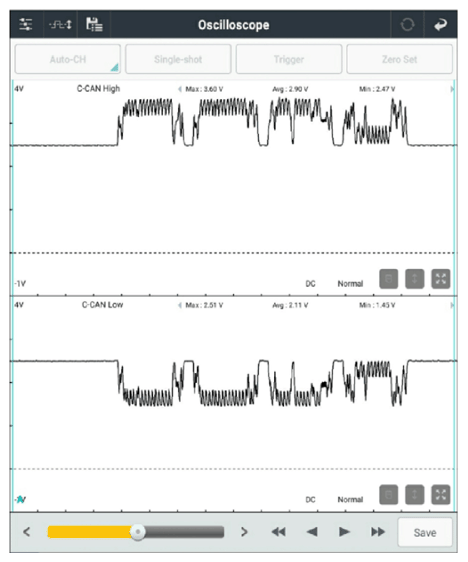

SCC/FCA connector | 4 (C-CAN high) | Chassis ground | - | Fig.2 |
| SCC/FCA connector | 5 (C-CAN low) | Chassis ground | - | ||
|
SCC/FCA connector | 4 (C-CAN high) | ICU connector | 29 (C-CAN high) | Approx. below 1Ω |
| SCC/FCA connector | 5 (C-CAN low) | ICU connector | 30 (C-CAN low) | Approx. below 1Ω | |
Good
- Check ECM, ICU (CGW), SCC/FCA module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Check for open or short in harness.
- Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
