Special Service Tool: Notes

Tool Name/Number	Illustration	Description
Engine support fixture (bar) 09200 - 3N000	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing automatic transaxle *Refer to the engine support fixture assembly drawing below.

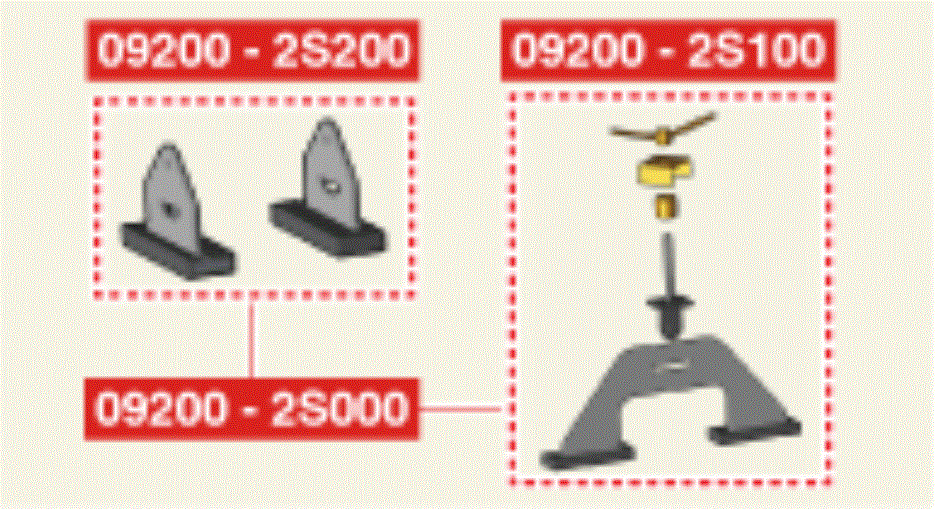

Engine support fixture (supporter) 09200 - 2S000 09200 - 2S100 09200 - 2S200	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing automatic transaxle *Refer to the engine support fixture assembly drawing below.
Engine support fixture (adapter) 09200 - 4X000	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing automatic transaxle *Refer to the engine support fixture assembly drawing below.
Oil seal installer 09453 - 3L240	Courtesy of KIA MOTORS AMERICA, INC.	Used for installing oil seal of both side in case of FWD vehicle Used for installing oil seal of transaxle case side in case of AWD vehicle Used with the handle (09231 - H1100)
Oil seal installer 09453 - 2W100	Courtesy of KIA MOTORS AMERICA, INC.	Used for installing oil seal of converter housing side in case of AWD vehicle Used with the handle (09231 - H1100)
Handle 09231 - H1100	Courtesy of KIA MOTORS AMERICA, INC.	Used with the oil seal installer when installing differential oil seal
Position switch guide pin 0K948 - E4000	Courtesy of KIA MOTORS AMERICA, INC.	Used for fixing "N" range when installing position switch
