Removal And Installation: Removal

Shift the gear to N.
NOTE: Use wheel chocks to prevent vehicle moved accidentally.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

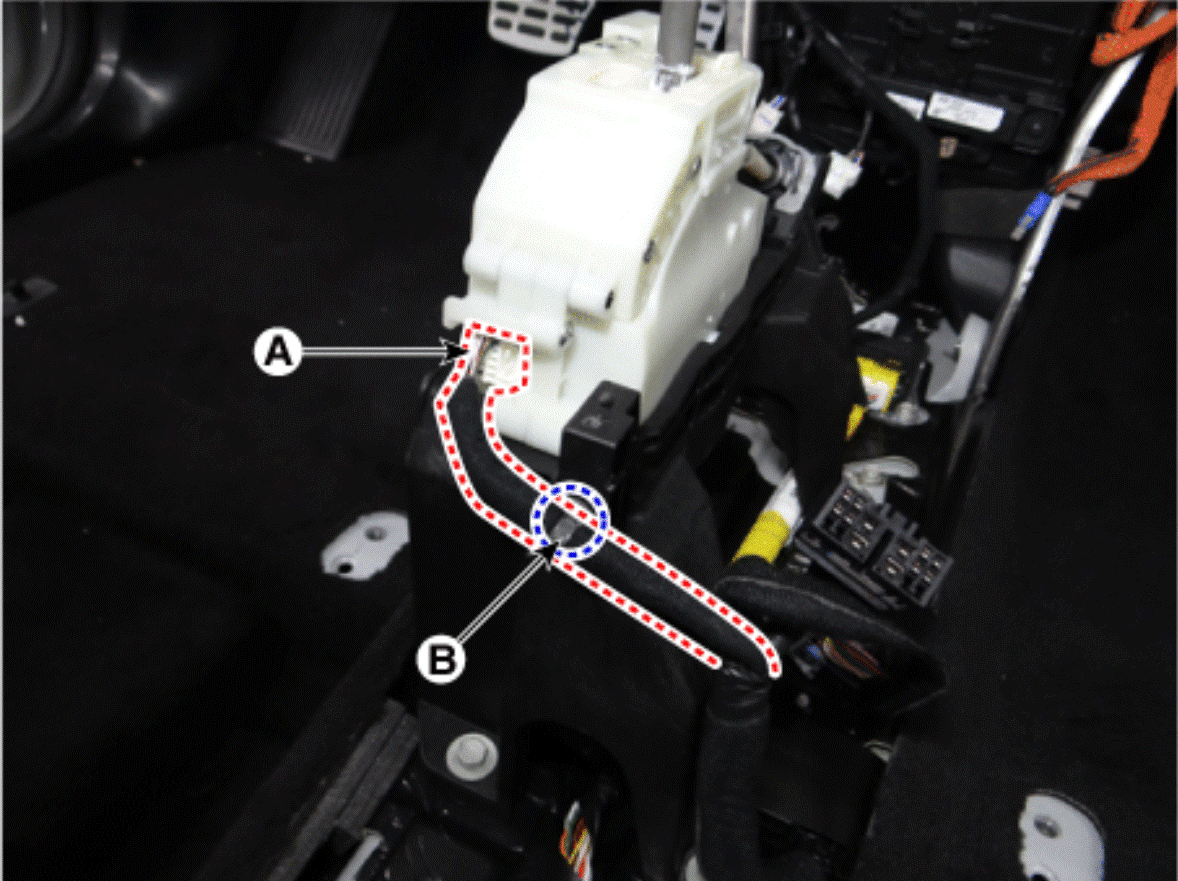

Disconnect the main connector (A) and then remove the wiring fixing clip (B) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

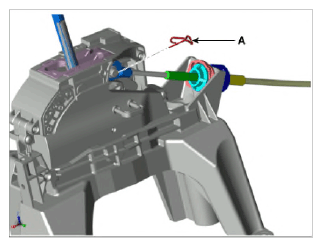

Remove the shift cable from the shift lever pin after removing the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

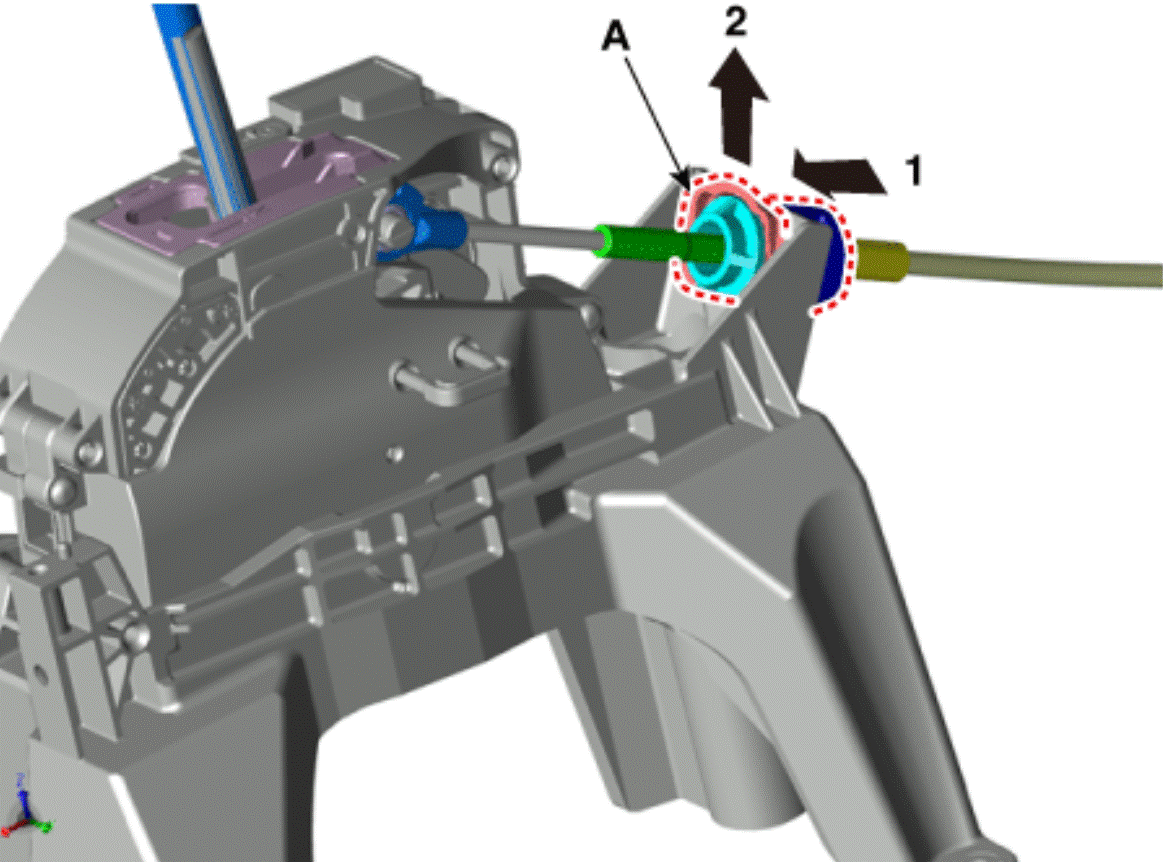

Remove the cable socket (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

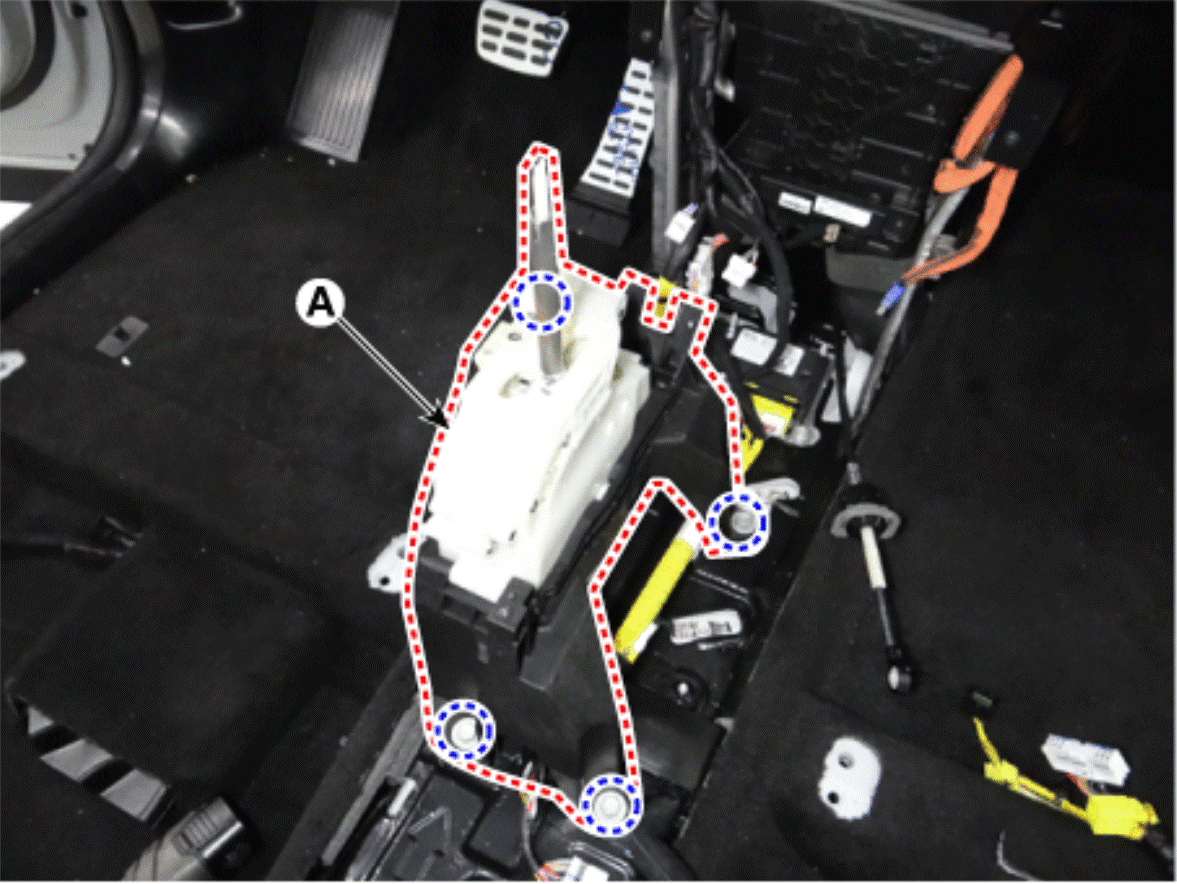

Remove the shift lever (A) after removing the bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
