Connector And Terminal Function

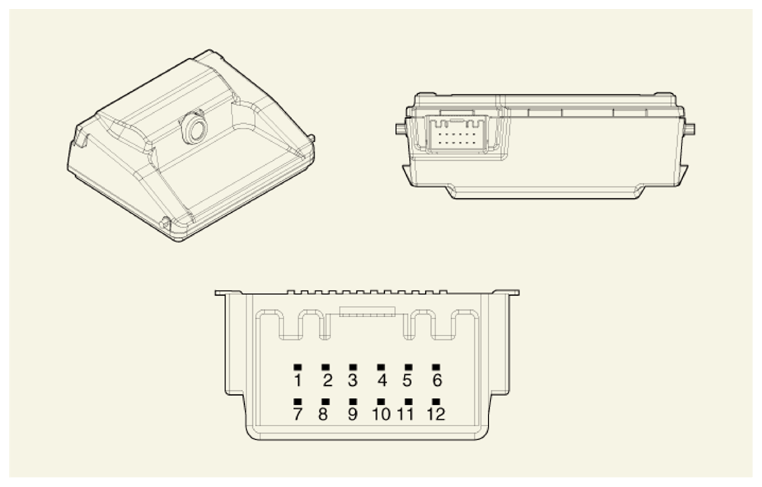

G16426506Courtesy of KIA MOTORS AMERICA, INC.
Pin No Connector
1 -
2 -
3 L-CAN (Low)
4 C-CAN (Low)
5 -
6 -
7 IG
8 -
9 L-CAN (High)
10 C-CAN (High)
11 Ground (-)
12 -
