Power Window Sub Switch

  1. Remove the front door trim [Passenger's Side].

    (Refer to Body - " FRONT DOOR TRIM  ")

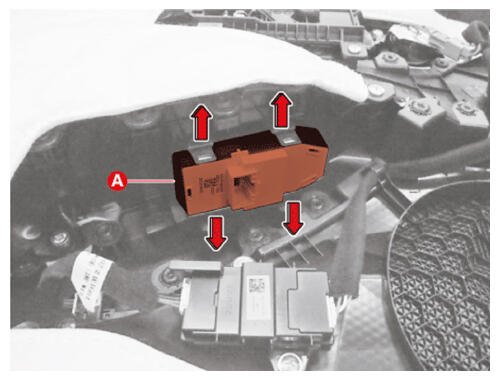

  2. Remove the power window sub switch (A) after pulling the hooks in the direction of arrow.
    G16426144Courtesy of KIA MOTORS AMERICA, INC.
