Components And Components Location: Component

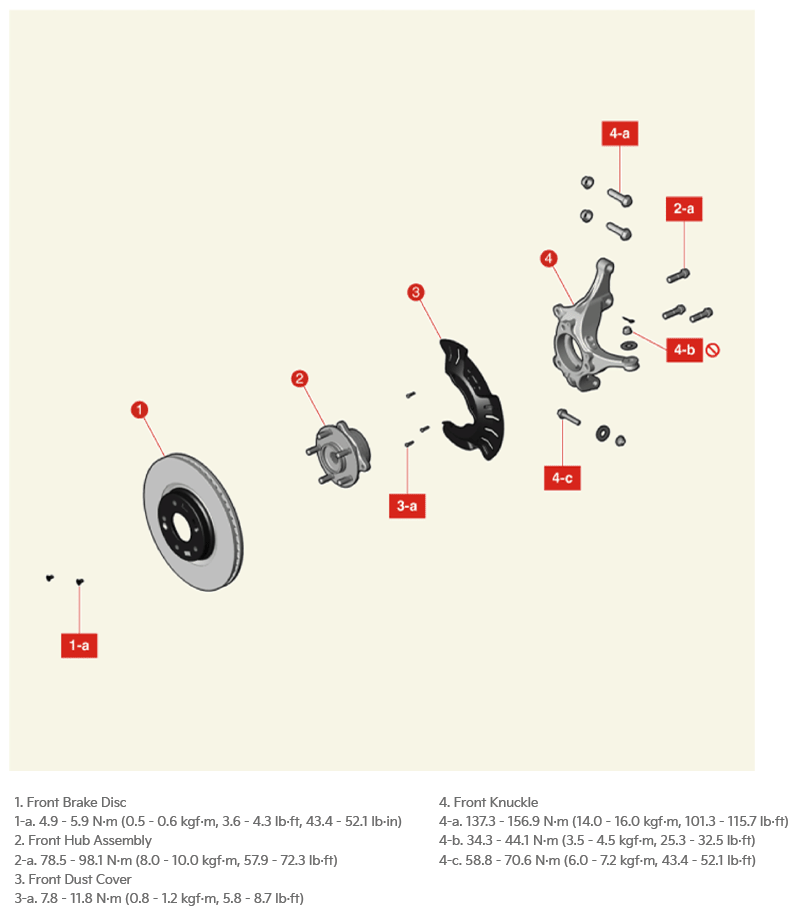

Fig 1: Front Axle Assembly Components Location With Torque Specifications
G16424380Courtesy of KIA MOTORS AMERICA, INC.
