Console Tray

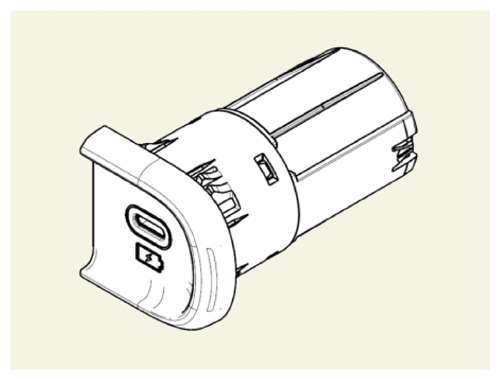

G16425859Courtesy of KIA MOTORS AMERICA, INC.
Connector Terminal Function
G16425860Courtesy of KIA MOTORS AMERICA, INC.
 1 Ground
2 Illumination (-)
3 Illumination (+)
4 ACC
