Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

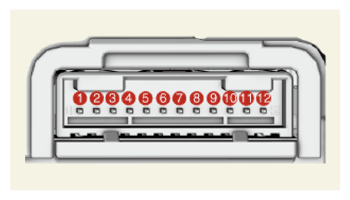

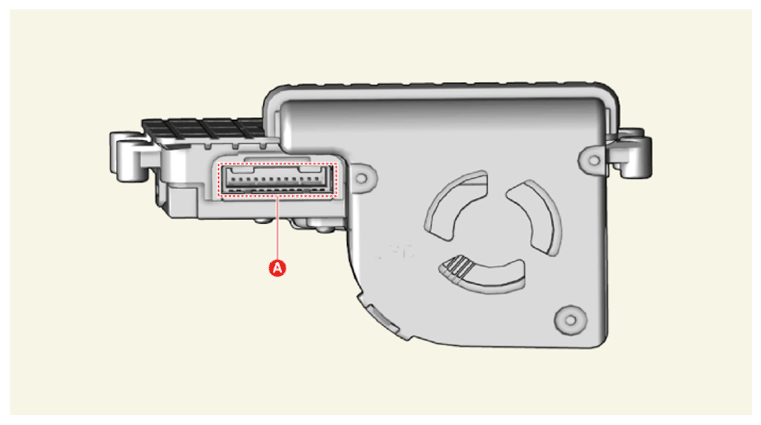

Connector A	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Ground
	2	Ground
	3	Wireless charging indicator (Amber)
	4	Wireless charging indicator (Green)
	5	B-CAN (Low)
	6	B-CAN (High)
	7	-
	8	L-CAN (Low)
	9	L-CAN (High)
	10	-
	11	IG 1
	12	Battery (+)
